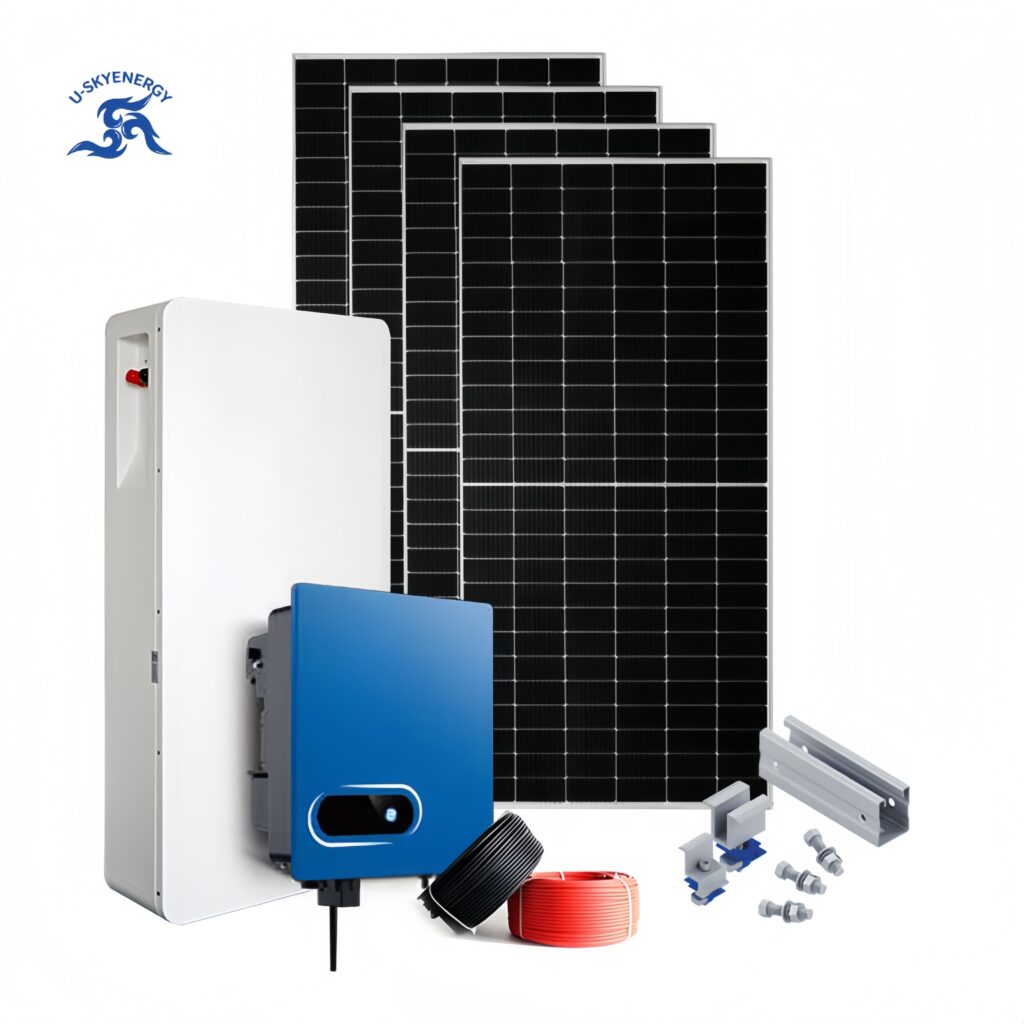

Off Grid 5-20KW Solar Power System
An off grid solar power system is a complete package that contains everything you need to generate your own solar energy, we have 3KW ,5kW to 20k W Solar Power System Off Grid for your choice. These systems are suitable for homes, offices and buildings that want energy independence and help to generate green energy.
Product Specifications
| Components | 5Kw-Off Grid | 10Kw-Off Grid | 15Kw-Off Grid | 20Kw-Off Grid |
|---|---|---|---|---|
| AC Voltage | single phase 220/240Vac;split phase :120/240Vac | single phase 220/240Vac;split phase :120/240Vac | 3phase 208/220/230/240/480VAC | 3phase 208/220/230/240/480VAC |
| PV Combiner Box | 1 | 1 | 1 | 1 |
| Solar Panels(PERC Mono 455W) | 10 | 22 | 32 | 44 |
| Off grid inverter (solar charger controller built-in) | 5KW | 10KW | 15KW | 20KW |
| Battery | lead acid battery/lithium battery | lead acid battery/lithium battery | lead acid battery/lithium battery | lead acid battery/lithium battery |
| PV Cable 4mm² | 100m | 200m | 300m | 400m |
| MC-4connector | 6pcs | 8pcs | 12pcs | 16pcs |
| Mounting Brackets | roof/ground | roof/ground | roof/ground | roof/ground |
| Installation Tools | Solar Install Pliers,wrench ,wire stripper | Solar Install Pliers,wrench ,wire stripper | Solar Install Pliers,wrench ,wire stripper | Solar Install Pliers,wrench ,wire stripper |
| Reference | For small homes (2–3 people), daily use 8–15 kWh | For medium homes (3–5 people), daily use 15–25 kWh | For large families, daily use 25–35 kWh | For big houses/villas, daily use 35–50 kWh |
Off-Grid Connection principle
Off-grid solar system components

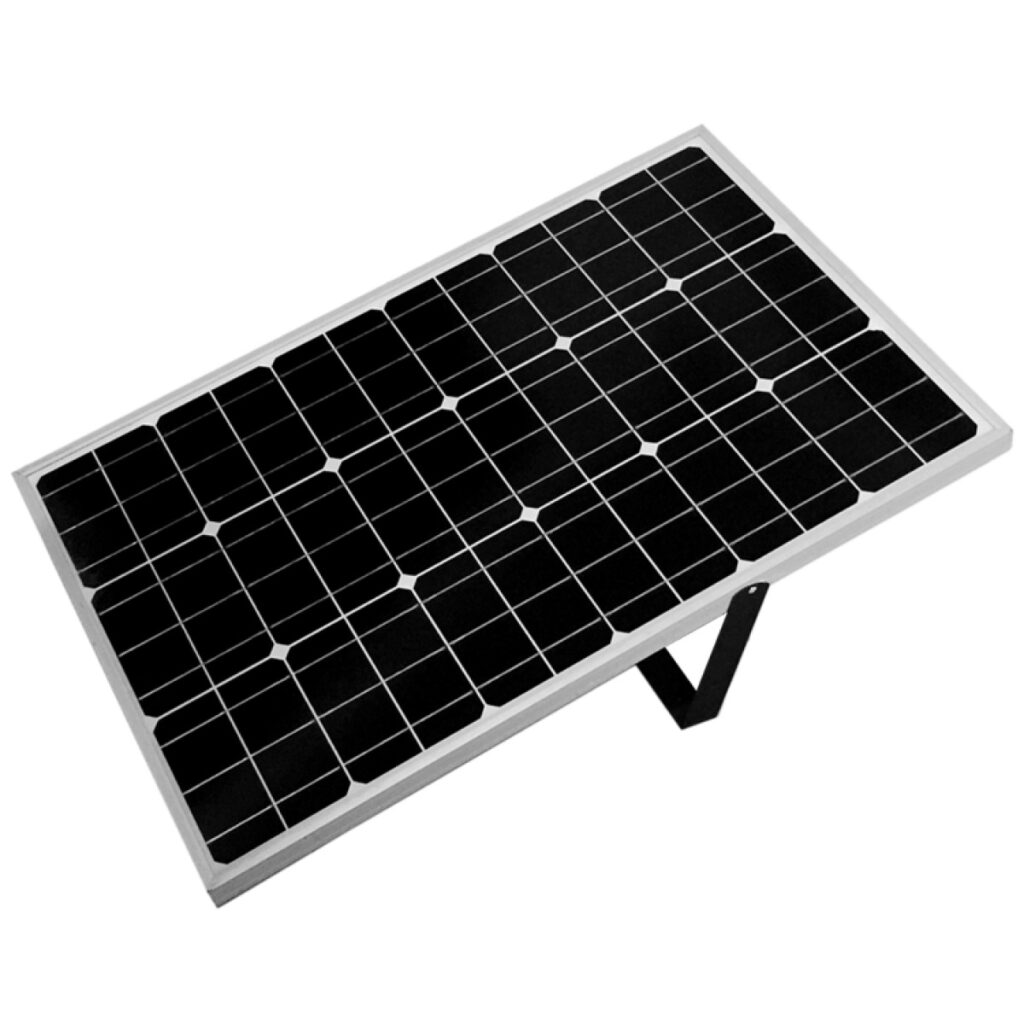

solar panel
·Perc/Bifacial/Shingled solar panels are available
·10 years warranty
·Highest quality with full certificates
·Excellent mechanical load resistance
·PID Resistant High salt and ammonia resistance
·Power range: 630w – 730w
·0 – 5W positive power tolerance

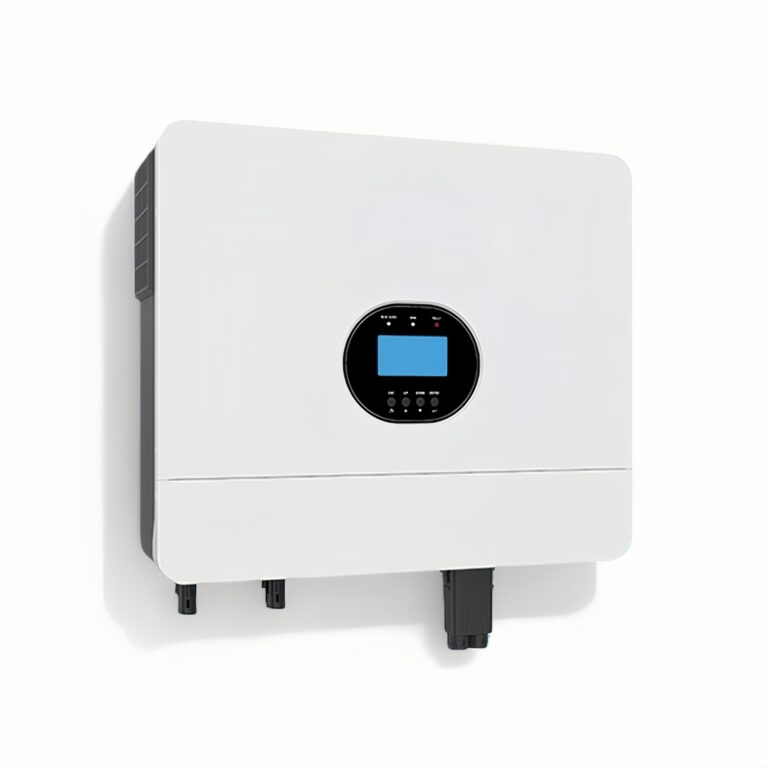

Inverter
·US/EU version
·Single phase or split phase or three phase options available
·Power range: 5KW – 20KW; IP65; Liquid crystal display
·24-hour precise monitoring

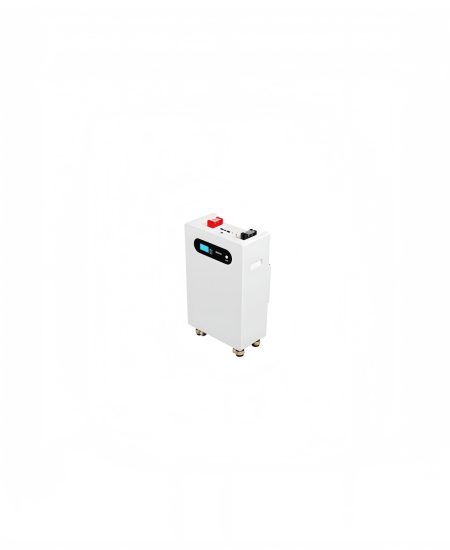

Solar Battery
·lead acid battery/lithium battery
·Wall-mounted / roller-type / stacked batteries
·Low-voltage / high-voltage batteries
·Higher quality and longer lifespan

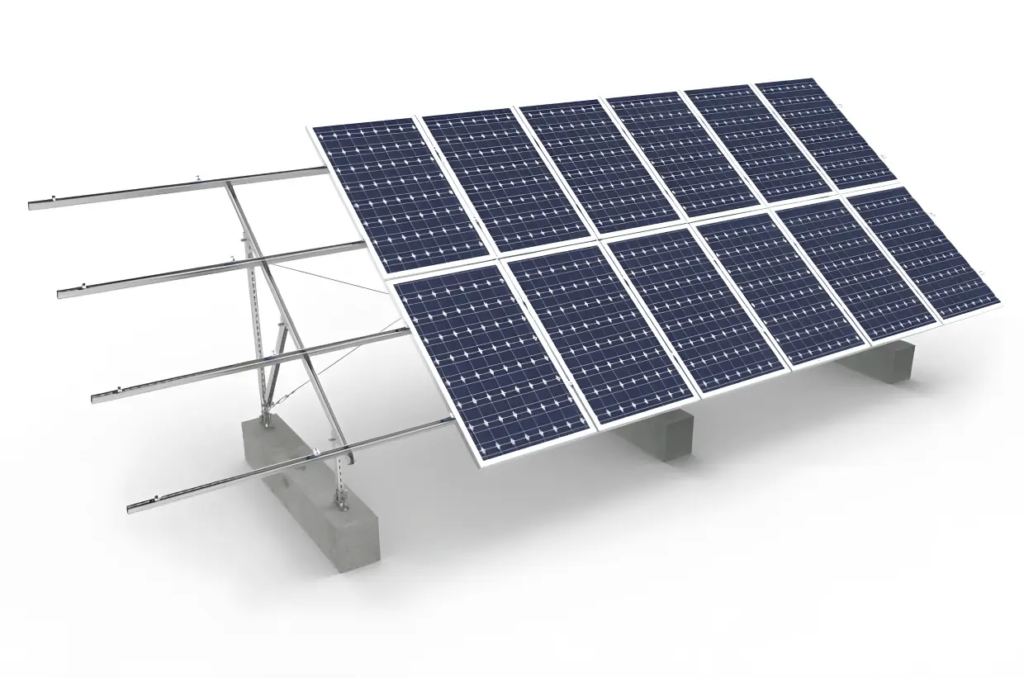

Installation bracket
·Inclined roof installation structure
·Flat roof installation structure
·Ground installation structure
·Carport installation structure
·Life span: 25 years

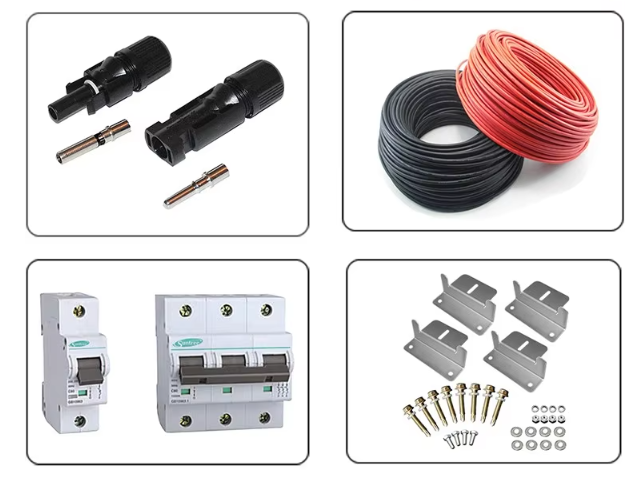

Accessories
·PV cable
·AC cable
·DC switches
·AC breaker
·Cable connector
·Pv combiner box
Packaging ＆ transportation
