Hybrid 5-12KW Solar System
Hybrid solar systems combine the features of both on-grid and off-grid systems. On the one hand, hybrids have battery storage to store excess energy just like off-grid systems. On the other hand, these systems are also connected to the grid, allowing you to take advantage of net metering and ensuring a continuous power supply even when solar production is low. Thus, hybrid systems provide the flexibility of off-grid setups with the security of grid connectivity, making them a smart choice for those who want to reduce energy costs while having a reliable backup during outages.
The 5-12KW solar system is a popular product for households. Usage reference: 3-8 person households, 1-3 air conditioners, ordinary household appliances, emergency power during power outages
Specification
5KW Hybrid Solar System
| Item | Model | Description | Quantity |
| 1 | Solar Panels | 630W | 7 PCS |
| 2 | Solar Inverter | Hybrid 5KW | 1 PCS |
| 3 | Solar Battery | LiFePO4 10kwh | 1 PCS |
| 4 | Mounting System | Customized Product Based On Installation Roof/Ground | |
| 5 | DC Cable 4mm² | 100 meters | 1 Vol |
| 6 | PV Installation Tools | 1 Set | |
Note:The system configuration for lnitial designing, and the system configuration are subject to changing depends on your final Installation conditions and requirements. For more details, please send your inquiry to our Team.
8-12 KW Solar System
| Item | Model | Description | Quantity |
| 1 | Solar Panel | 630W | 12-19 PCS |
| 2 | Solar Inverter | Hybrid & Off-Brid 8-12KW | 1 PCS |
| 3 | Solar Battery | LiFePO4 16-24kwh | 1 PCS |
| 4 | Mounting System | Customized Product Based On Installation Roof/Ground | |
| 5 | DC Cable 4mm² | 100 meters | 1 Vol |
| 6 | PV Installation Tools | 1 Set | |
Note:The system configuration for lnitial designing, and the system configuration are subject to changing depends onyour final Installation conditions and requirements. for more details, please send your inquiry to our Team.

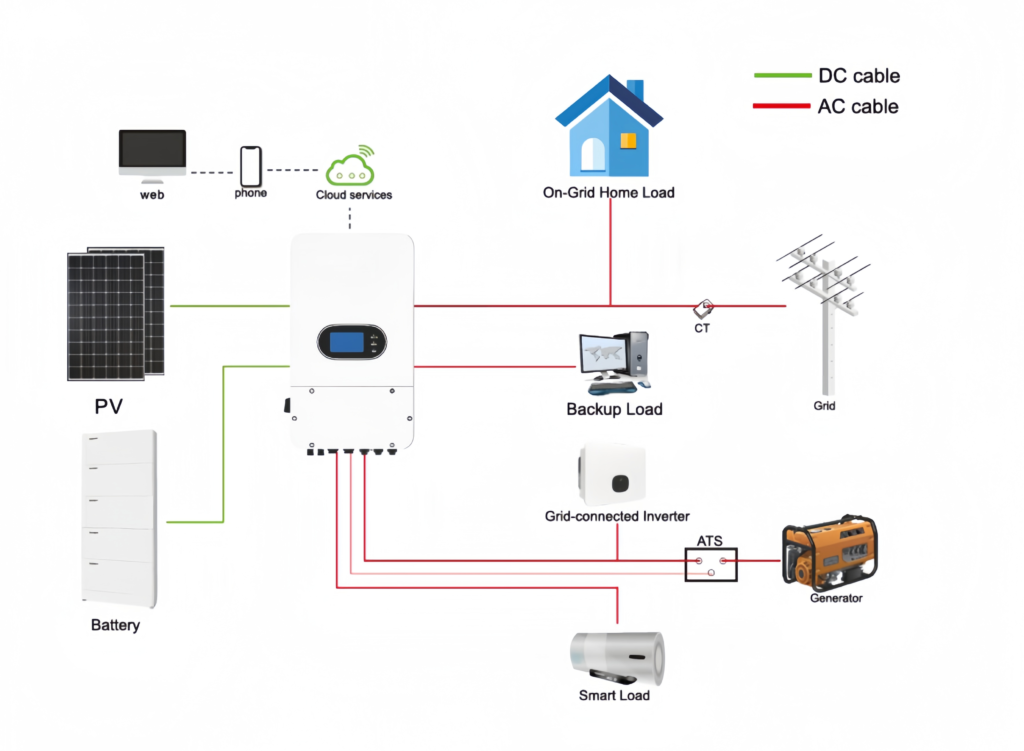

Hybrid Connection Principle
Hybrid Solar System Components

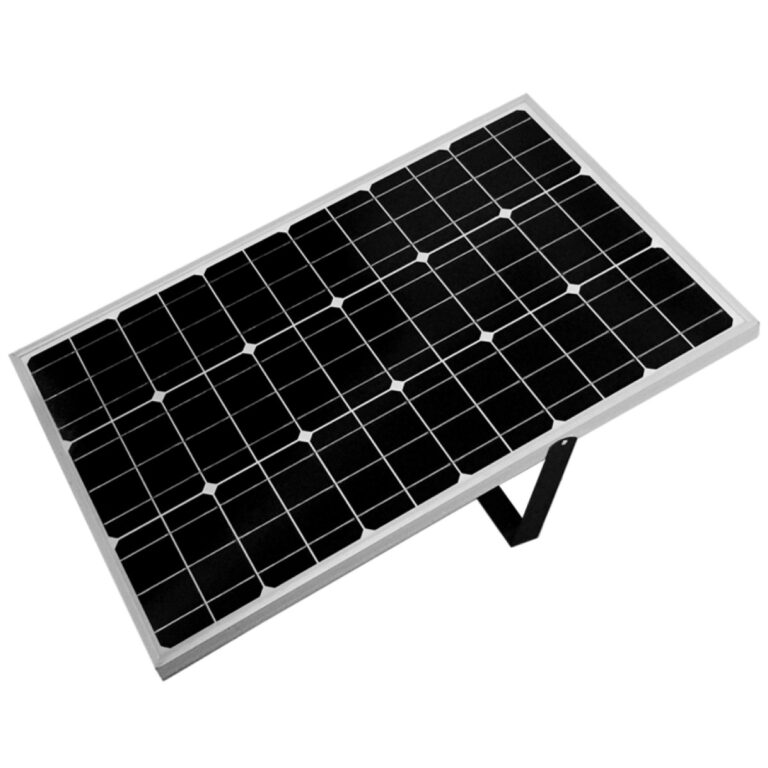

solar panel
·Perc/Bifacial/Shingled solar panels are available
·10 years warranty
·Highest quality with full certificates
·Excellent mechanical load resistance
·PID Resistant High salt and ammonia resistance
·Power range: 630w – 730w
·0 – 5W positive power tolerance

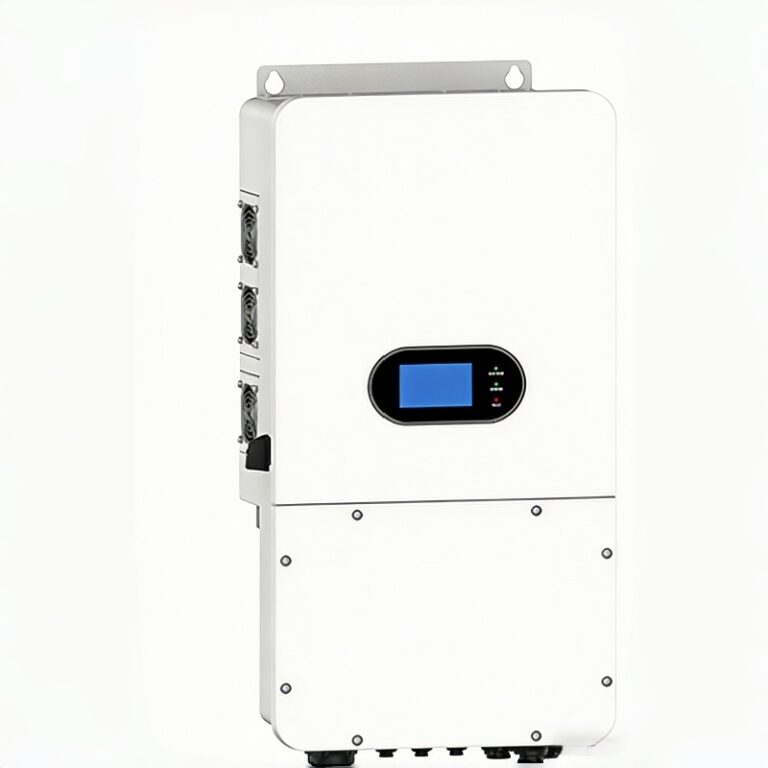

Inverter
·US/EU version
·Single phase or three phase options available
·Power range: 5KW – 12KW; IP65; Liquid crystal display
·24-hour precise monitoring
·Can be used in parallel

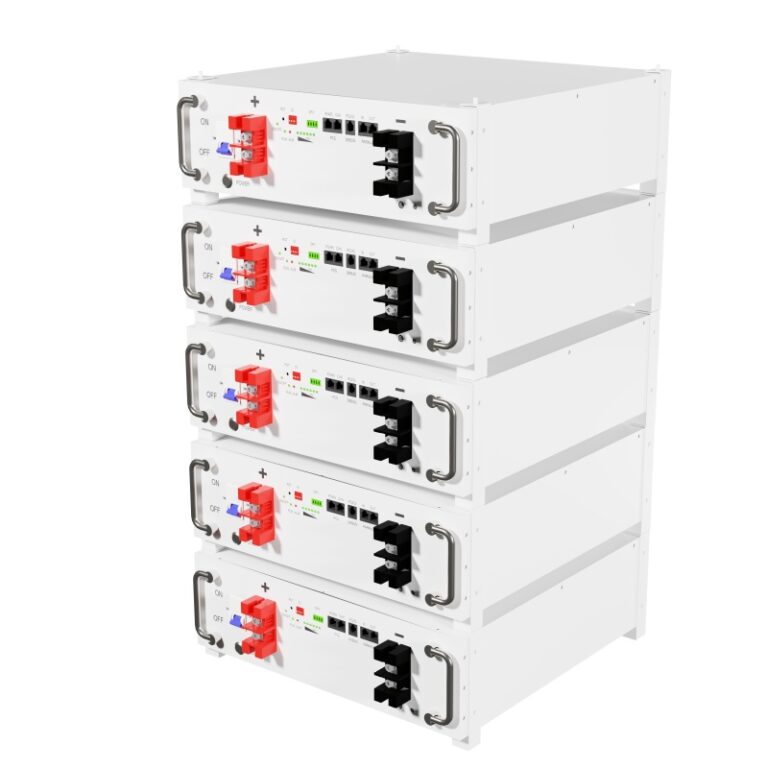

Solar Battery
·lead acid battery/lithium battery
·Wall-mounted / roller-type / stacked batteries
·Low-voltage / high-voltage batteries
·Higher quality and longer lifespan

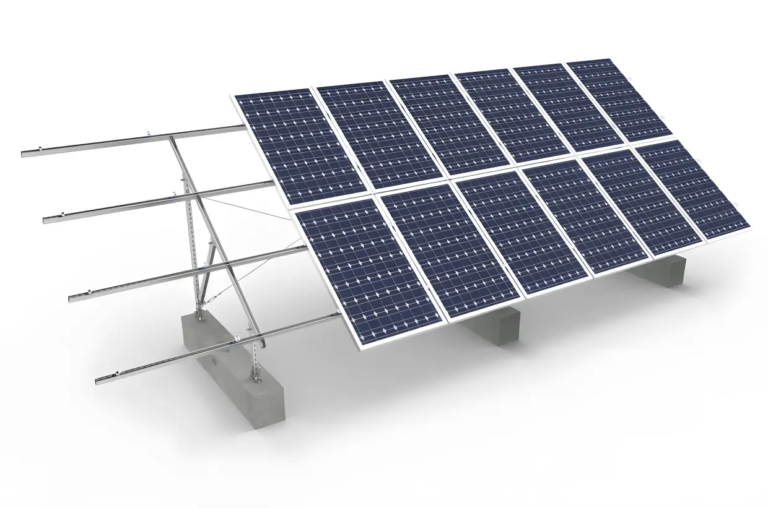

Installation bracket
·Inclined roof installation structure
·Flat roof installation structure
·Ground installation structure
·Carport installation structure
Material: Steel/Aluminum
·Life span: 25 years
Accessories
·PV cable
·AC cable
·DC switches
·AC breaker
·Cable connector
·Pv combiner box
