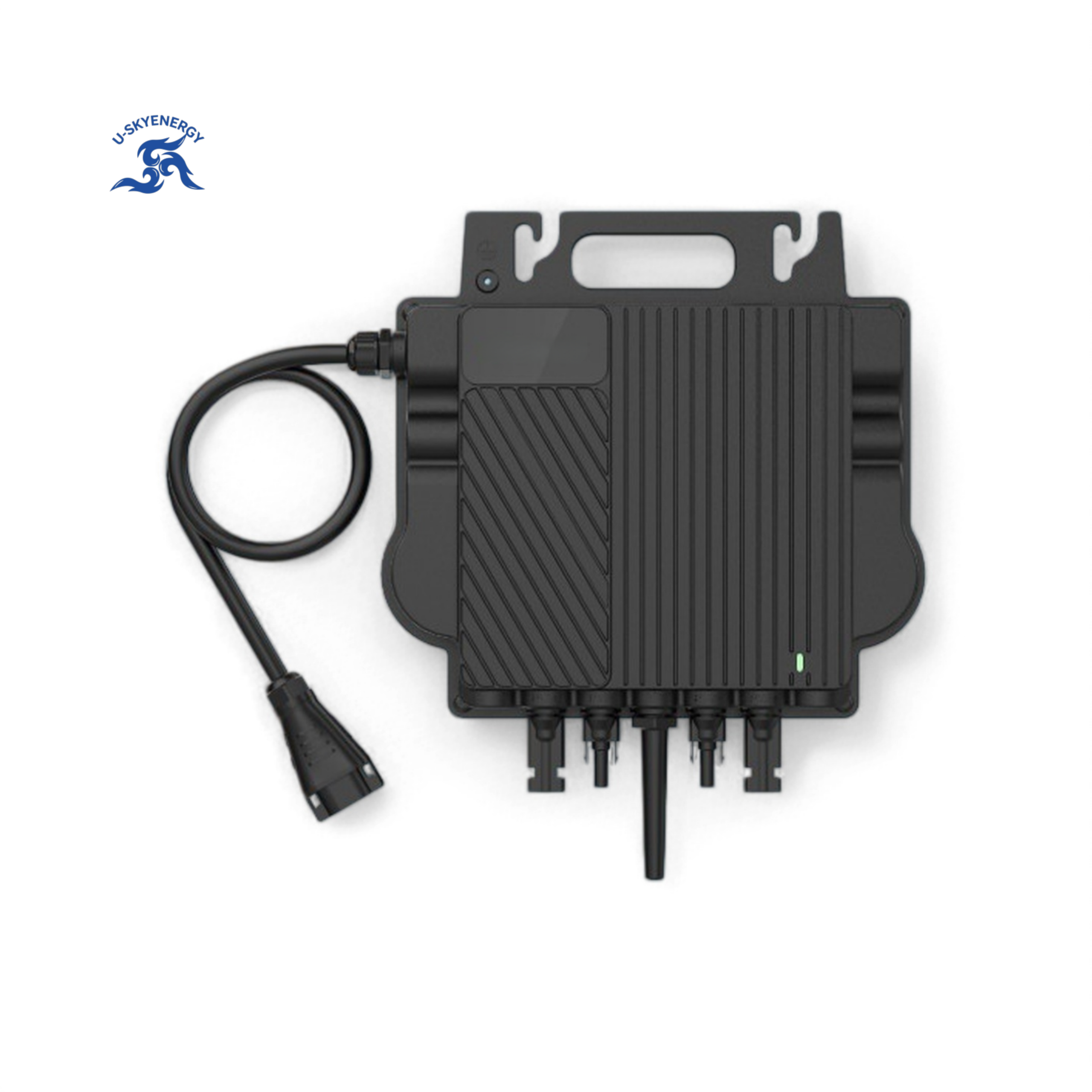

Micro inverter 600-1000W
The 600-1000W micro inverter is the core grid-connected device for balcony photovoltaics, household distributed power generation, small roofs, and sunrooms. It features dual independent MPPT, compatible with 320–540W + high-power modules; the overall efficiency is 97.3%, IP67 dustproof and waterproof, and silent without a fan; it supports WiFi/LoRa remote monitoring, component-level data visualization; plug-and-play, 5-meter AC plug + MC4 DC interface; no need for complex wiring for balcony renovations, enabling household green power generation for self-consumption and reducing electricity costs.
Product Advantages
- 2 independent MPP trackers
- Reactive power control
- Rapid shutdown function
- IP67 protection degree
- Support LoRa communication

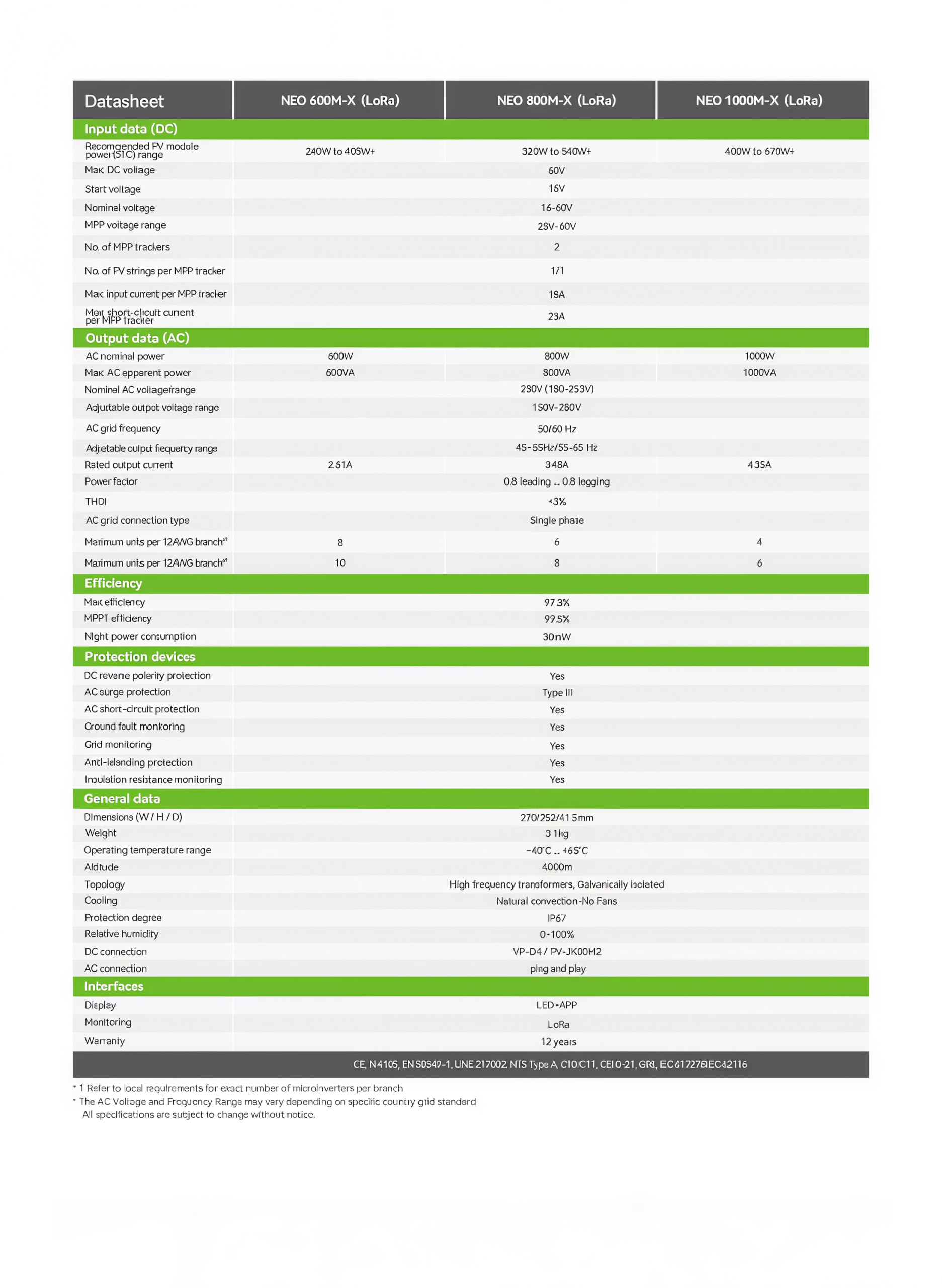

Micro Inverter 600-1000W Parameters

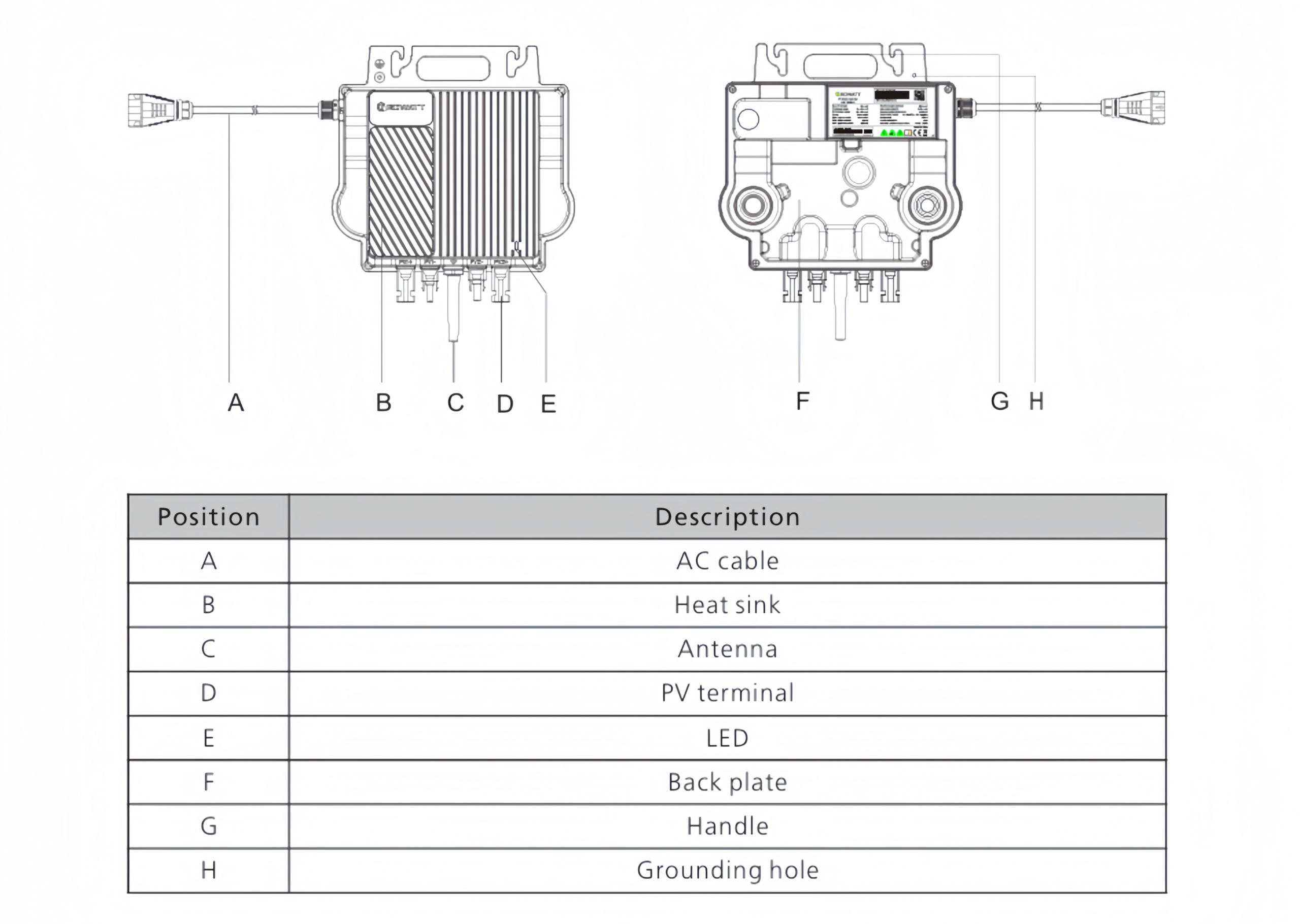

Inverter in detail
Micro Inverter 600 - 1000W Purchase Guide
1. Urban balcony photovoltaic power generation: For small-sized balconies, 2-4 panels, 600-1000W micro-inverter, self-generation and self-consumption, saving electricity costs.
2. High-rise residences / apartments sunrooms: Without a roof? Install photovoltaic panels on balconies / window sills, connect micro-inverter to the grid, no need for property approval.
3. Rural self-built houses small rooftops: Roofs under 10㎡, 2-4 large panels, 800W/1000W micro-inverter, efficient power generation.
4. Shops / small stores sunshades: Install photovoltaic panels on storefronts / sunshades, connect to micro-inverter, reduce commercial electricity costs.
5. BIPV photovoltaic curtain walls / car shelters: Small photovoltaic curtain walls, parking shelters, connect micro-inverter for decentralized grid connection, safe and efficient.

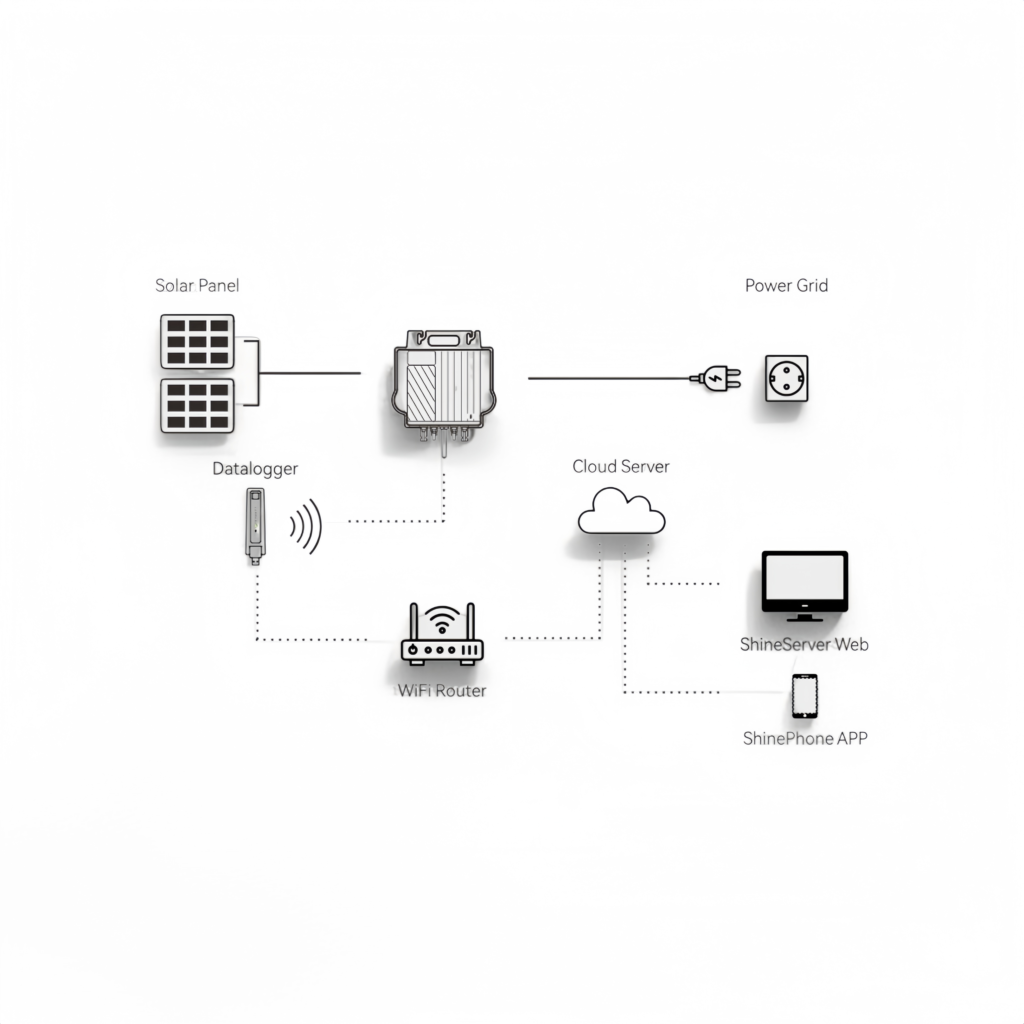

Micro inverter working principle
FAQ
Each panel of the micro-inverter operates independently for invertering, which offers higher safety, greater power generation capacity, and does not affect the entire system in case of a failure; while in the string-type system, multiple panels are connected in series for invertering, and the failure of one panel will affect the entire group.
For 600-1000W, it falls under small-scale distributed photovoltaic power generation. In most areas, it can be simply connected to the grid or "generate your own electricity and store the surplus for your own use only", without the need for complex approval procedures.
Yes, it can. With good low-light performance, even on cloudy / rainy days, a small amount of electricity can be generated; the dual MPPT design enables more precise tracking under low light conditions.
Minimal installation. The micro inverter is fixed to the balcony railing / wall, the photovoltaic panel is placed on the balcony. No drilling is needed to damage the decoration. Just plug and connect.
The micro-inverter is a grid-connected generator, not a stand-alone inverter; the electricity generated is primarily used for household loads (lighting, refrigerators, televisions, etc.), and cannot directly power high-power air conditioners (requires a larger system or energy storage).
