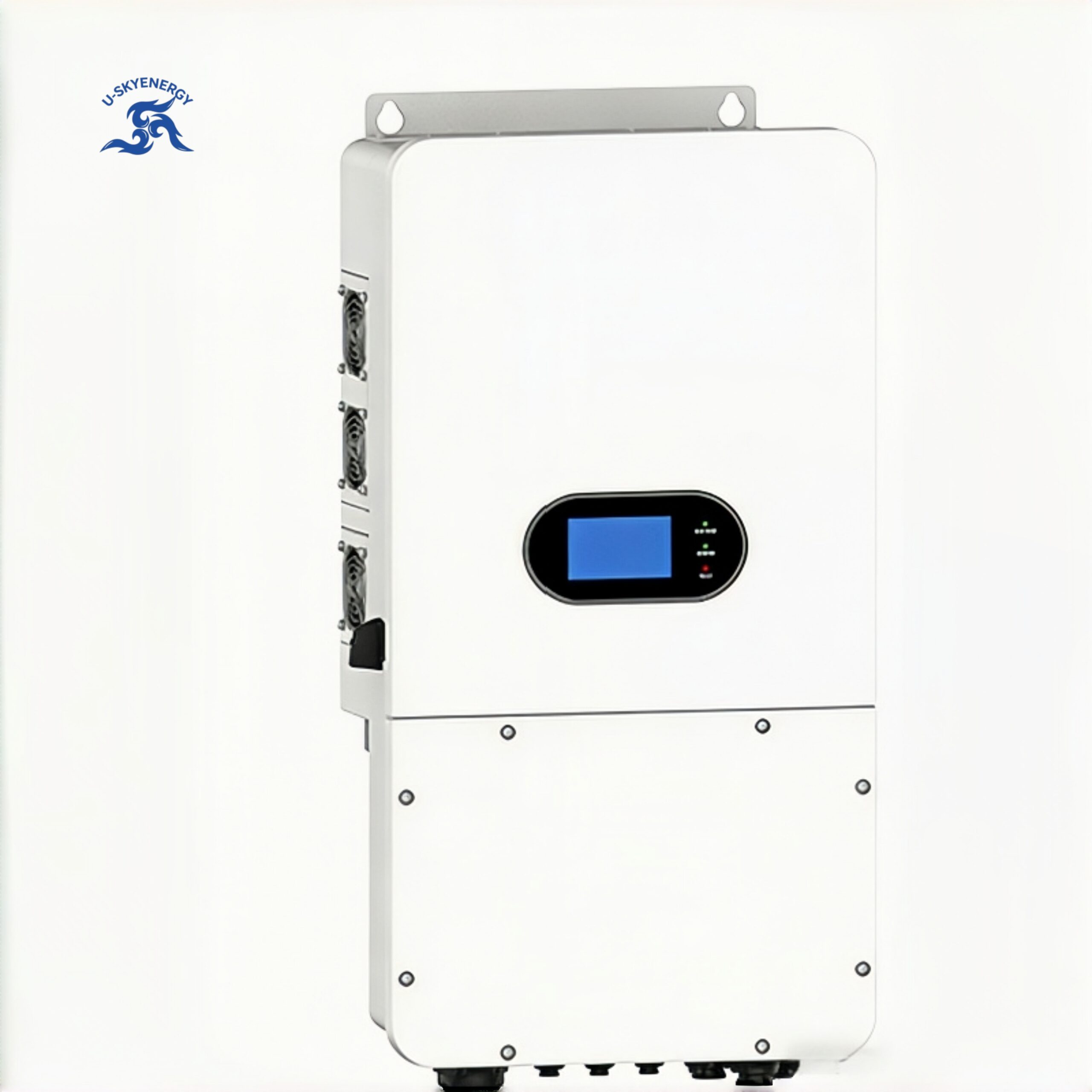

Hybrid single-phase 3-6kW inverter
The hybrid single-phase 3-6KW inverter is the core equipment for home and small commercial solar-storage integration systems. It features dual MPPT design, which efficiently captures solar energy; it supports battery-free startup and direct-drive load from photovoltaics, and in sunny conditions, power can be used without a battery. It is compatible with lithium batteries / lead-acid batteries and can automatically switch to off-grid mode in case of power outage, ensuring seamless power supply. It supports WiFi remote monitoring, multi-machine parallel connection for capacity expansion, and is suitable for various scenarios such as full-house load backup, off-grid power supply, and peak-valley arbitrage.
Product Advantages
- Supports 230Vac Single Phase, 230/400Vac Three Phase System.
- Self-consumption and export to the grid.
- Configurable battery charging current/voltage based by touch screen setting.
- Configurable AC/Solar/Generator Charger priority by touch screen setting.
- Hybrid inverter Support for connecting to generator.
- AC power loss restart.
- Time of use function.
- Smart battery charger design for optimized battery performance.
- Supporting WiFi/4G/Bluetooth/LAN monitoring and build-in 2 strings of MPPT.
- Smart settable three stages MPPT charging for optimized battery performance.
- Overload/Over temperature/Short circuit protection.
- Programmable supply priority for battery or grid.
- Programmable multiple operation modes: On Grid Mode, Self-consumption Mode, Zero Export Limit.

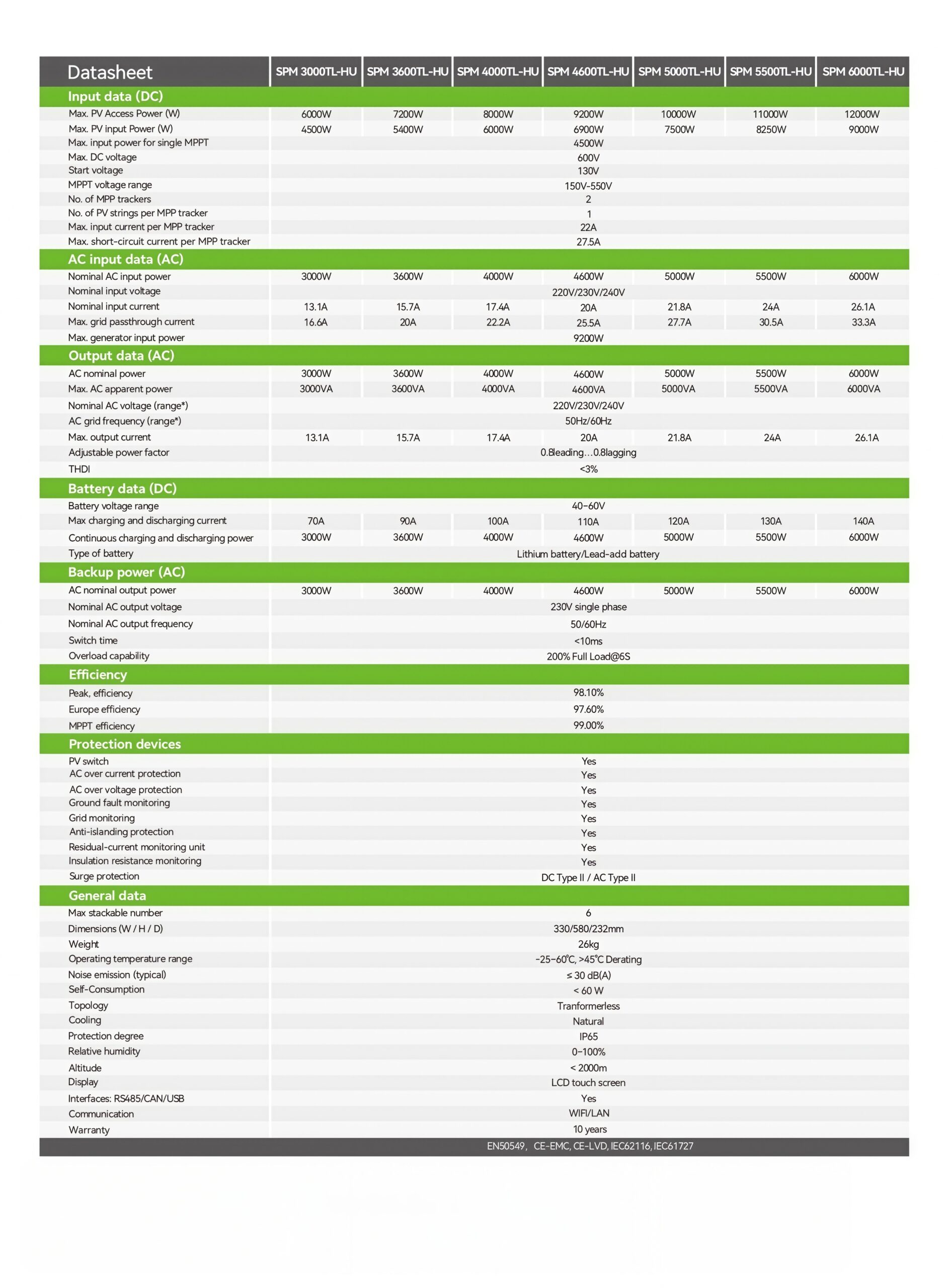

Hybrid Single-phase 3-6kW Inverter Parameters

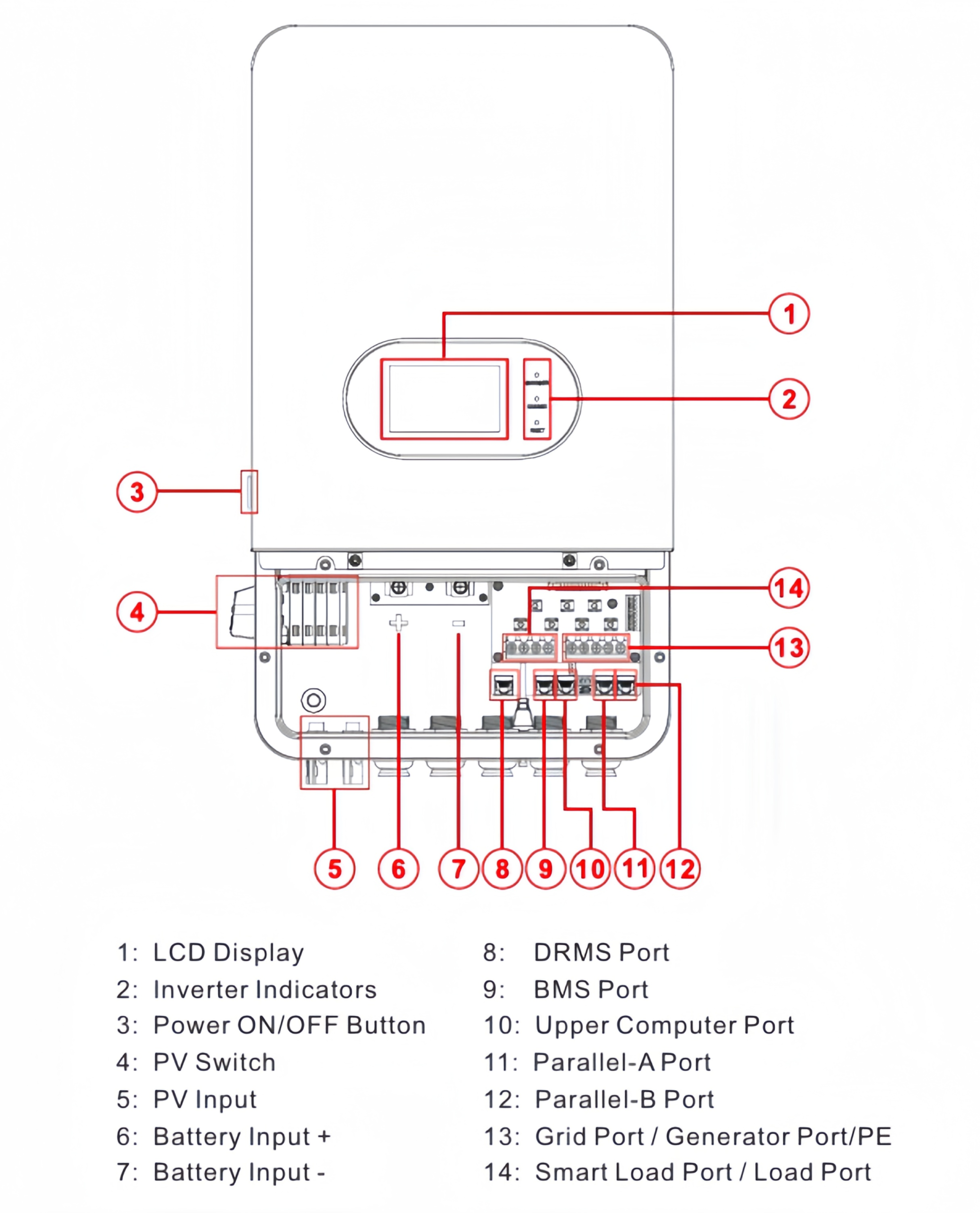

Inverter in detail
Hybrid Single-Phase 3-6KW Inverter Purchase Guide
1. Household photovoltaic storage system: 3-6kW suitable for all household loads, automatic backup in case of power outage, reduces electricity costs.
2. Areas without grid power: mountainous areas, rural areas, log cabins, photovoltaic direct drive + storage, stable power supply.
3. Villas / Farmhouses: main power supply or backup power supply, ensuring operation of high-power loads.
4. RVs / Yachts / Mobile campsites: 48V safe voltage, moderate size, can operate without batteries.
5. Small commercial: shops, workshops, convenience stores, 3-6kW power supply, expandable, reduces electricity costs.
6. Adequate lighting, limited budget: battery-free direct drive photovoltaic system, the simplest system and the most cost-effective.

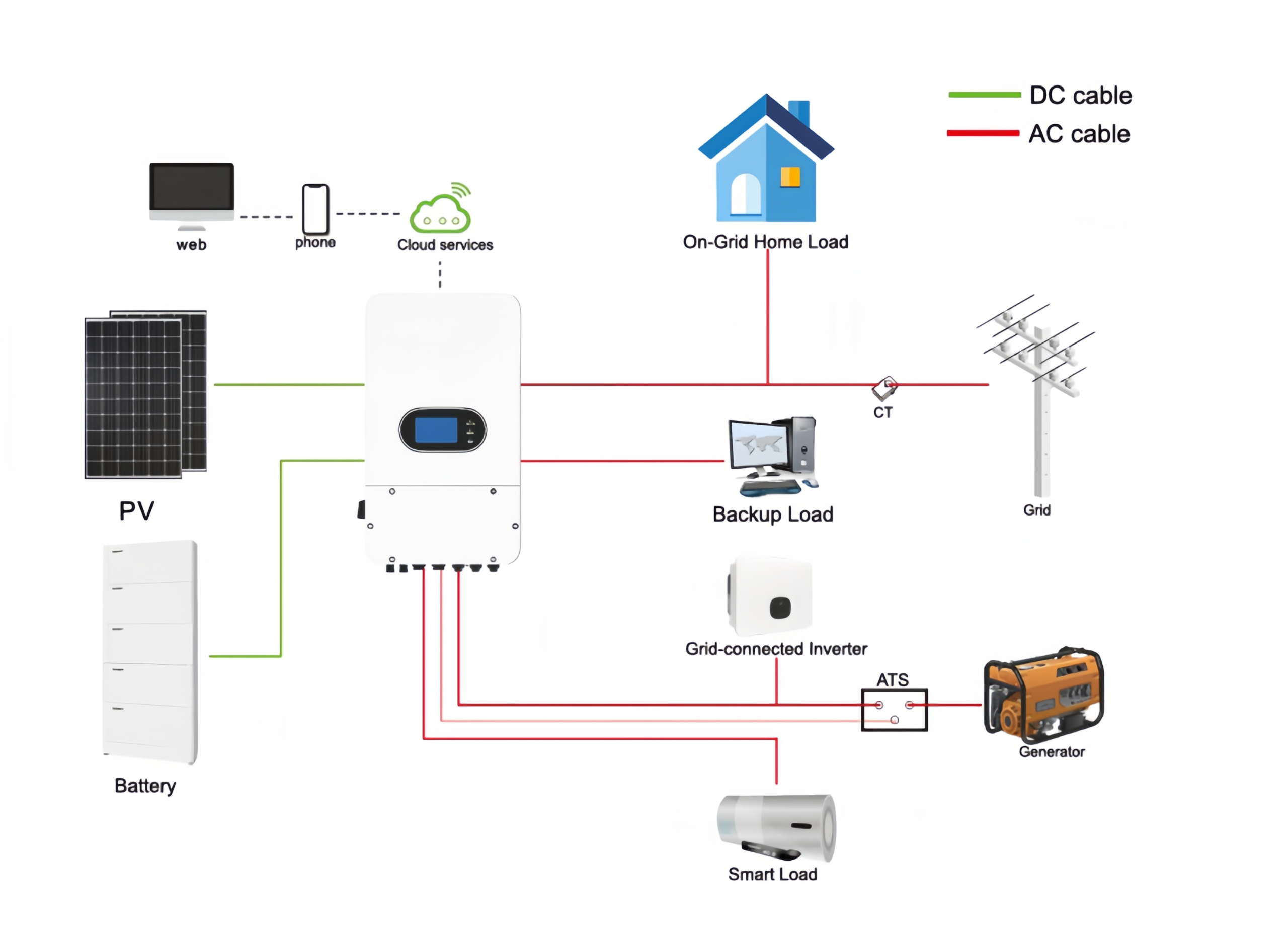

Hybrid working principle
FAQ
Hybrid and off-grid inverter: During normal operation, it performs photovoltaic grid-connected power generation and stores excess electricity; in case of power outage, it automatically switches to off-grid mode to ensure uninterrupted power supply for the load.
Yes. Supports battery-free operation: The photovoltaic panel generates electricity which can directly power the load, without the need for a battery. It is suitable for scenarios with abundant sunlight and where electricity usage mainly occurs during the day.
The hybrid and off-grid inverters can still be used even during power outages. They can be equipped with battery storage or operate directly from solar panels without batteries. Pure grid-connected inverters cannot be used during power outages and cannot supply power to loads when disconnected from the grid.
(1) 3kW: Small apartments / Studios, suitable for basic lighting, refrigerator, TV
(2) 4–5kW: Medium-sized houses (3–4 bedrooms), can power 1–2 air conditioners + entire house load
(3) 6kW: Large houses / Villas, can power 3–4 air conditioners + high-power loads
