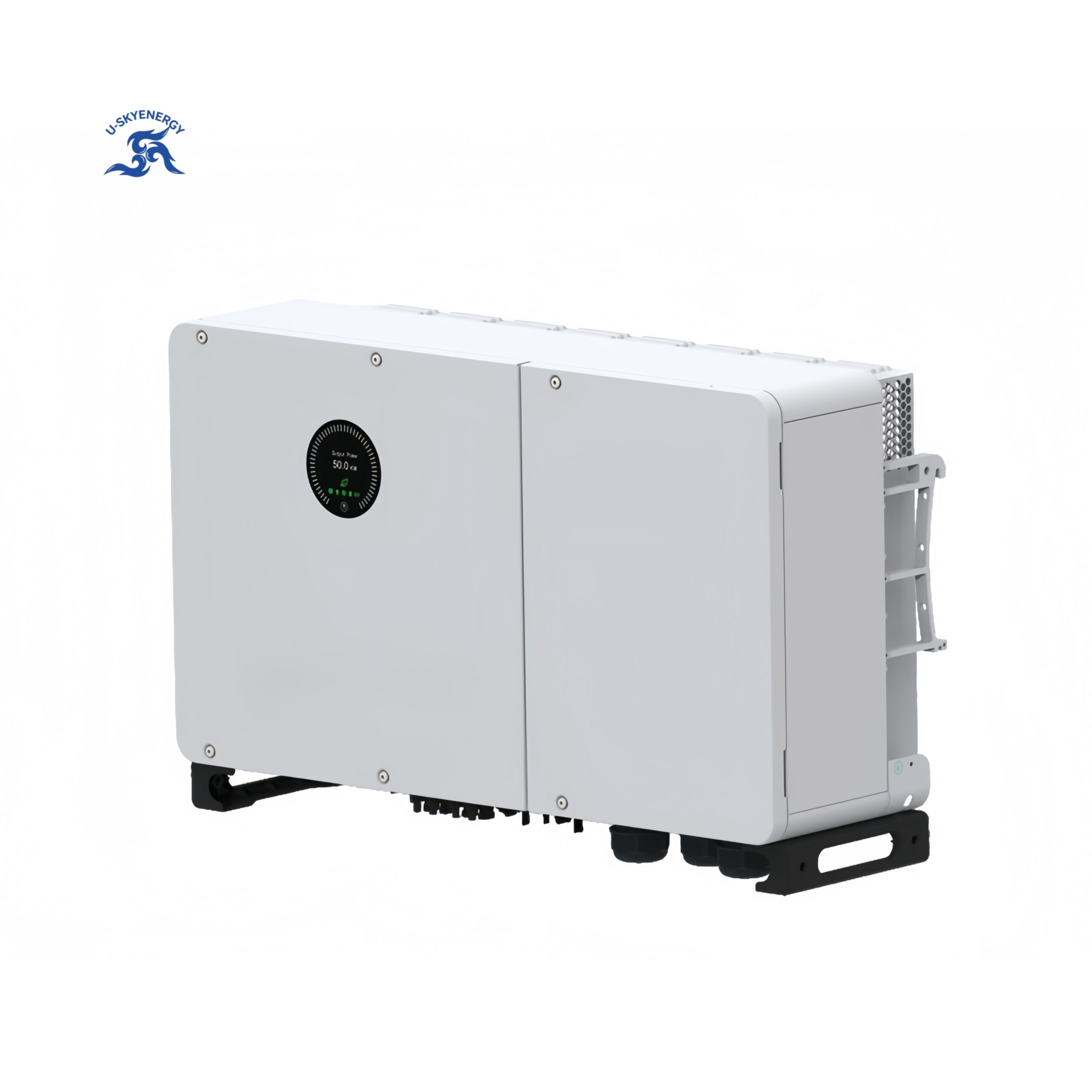

Three-phase hybrid 29.9-50KW inverter
29.9 – 50kW Hybrid Three-phase Inverter, specially designed for industrial and commercial solar-storage scenarios, integrates the advantages of both grid-connected and off-grid operation modes, covering the full power range of 29.9kW – 50kW. With its core features of high efficiency conversion, stable protection, and flexible adaptation, it becomes the preferred equipment for industrial and commercial rooftop photovoltaic, microgrids, and off-grid projects, helping users achieve energy autonomy, cost reduction and efficiency improvement, and balancing environmental protection and economic benefits.
Product Advantages
- Multiple MPPTs and battery input
- Support DG input and smart load function
- Support UPS function and black start function
- Support multi-system operation in paralel in off-grid mode
- Inteligent air cooling, no derating at 50°C ambient temperature
- 100% three-phase unbalanced output and 150% off-grid overload capacity
- Strong power grid adaptability, supporting weak grid environments with SCR

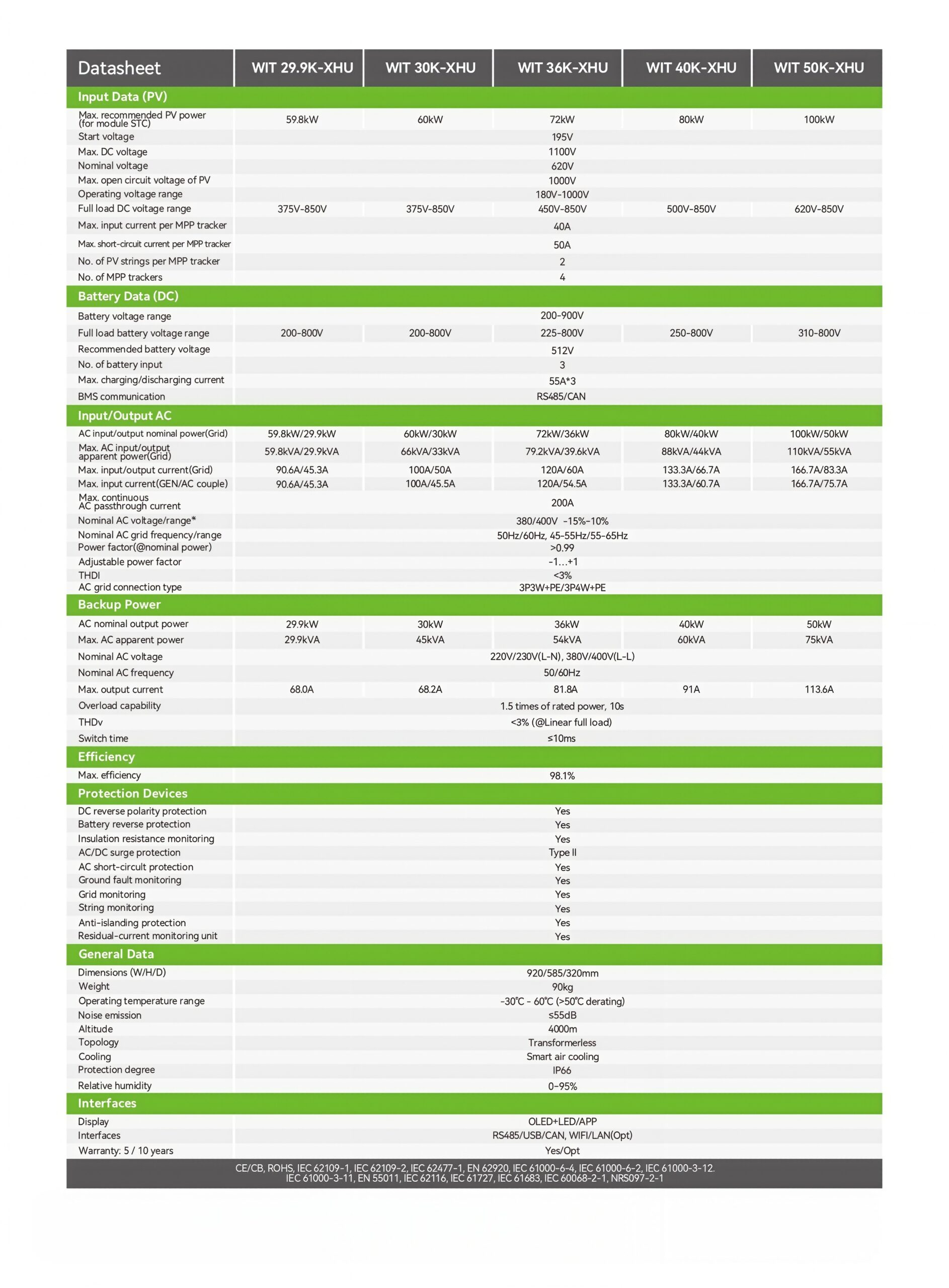

Hybrid Threee-phase 29.9-50kW Inverter Parameters

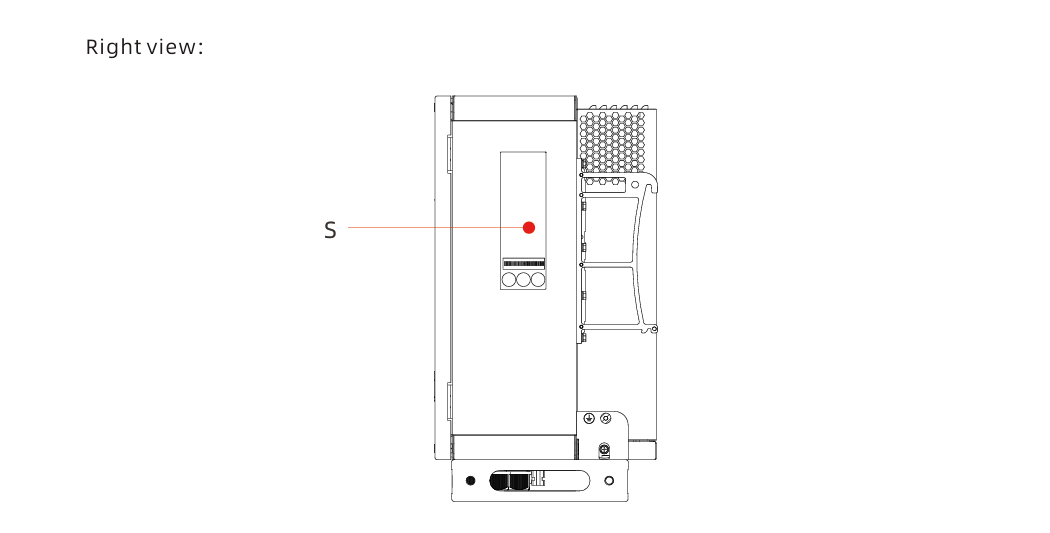

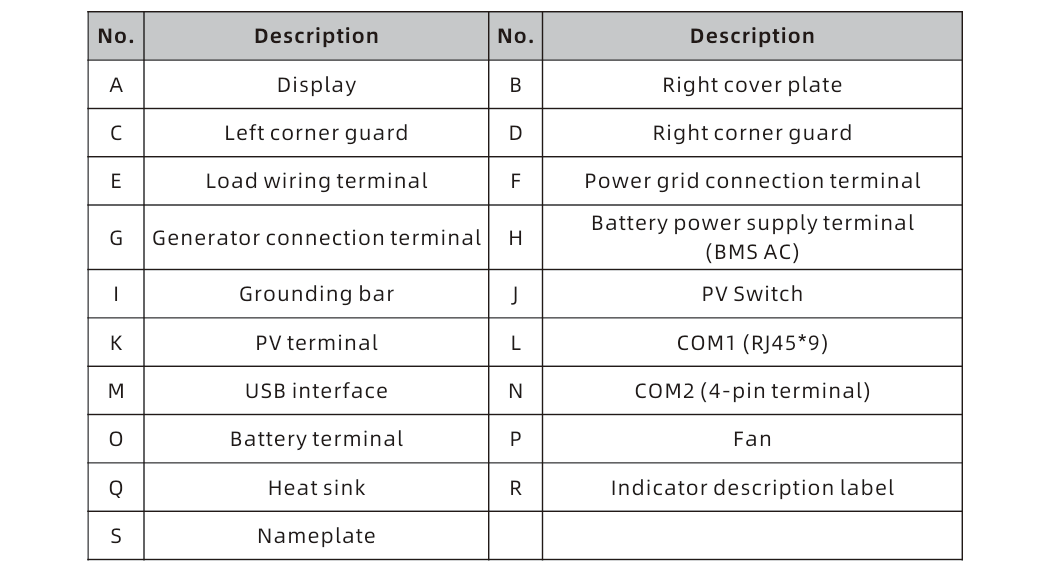

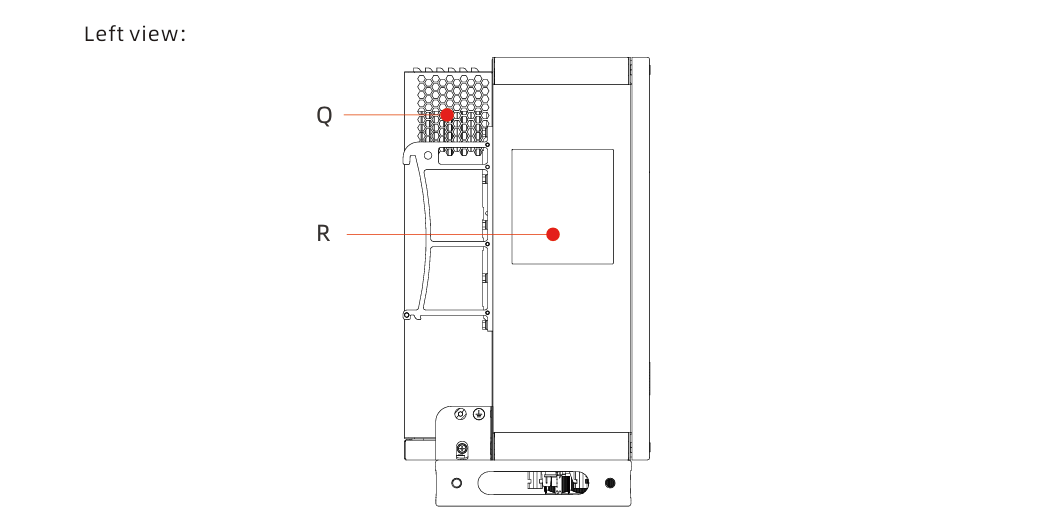

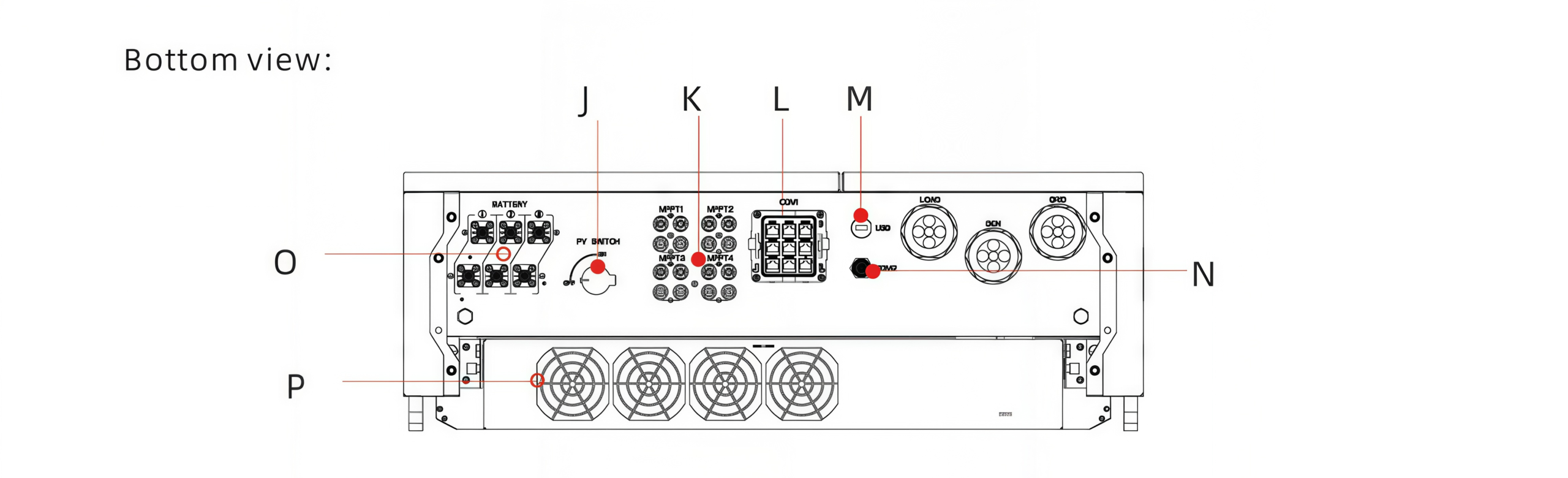

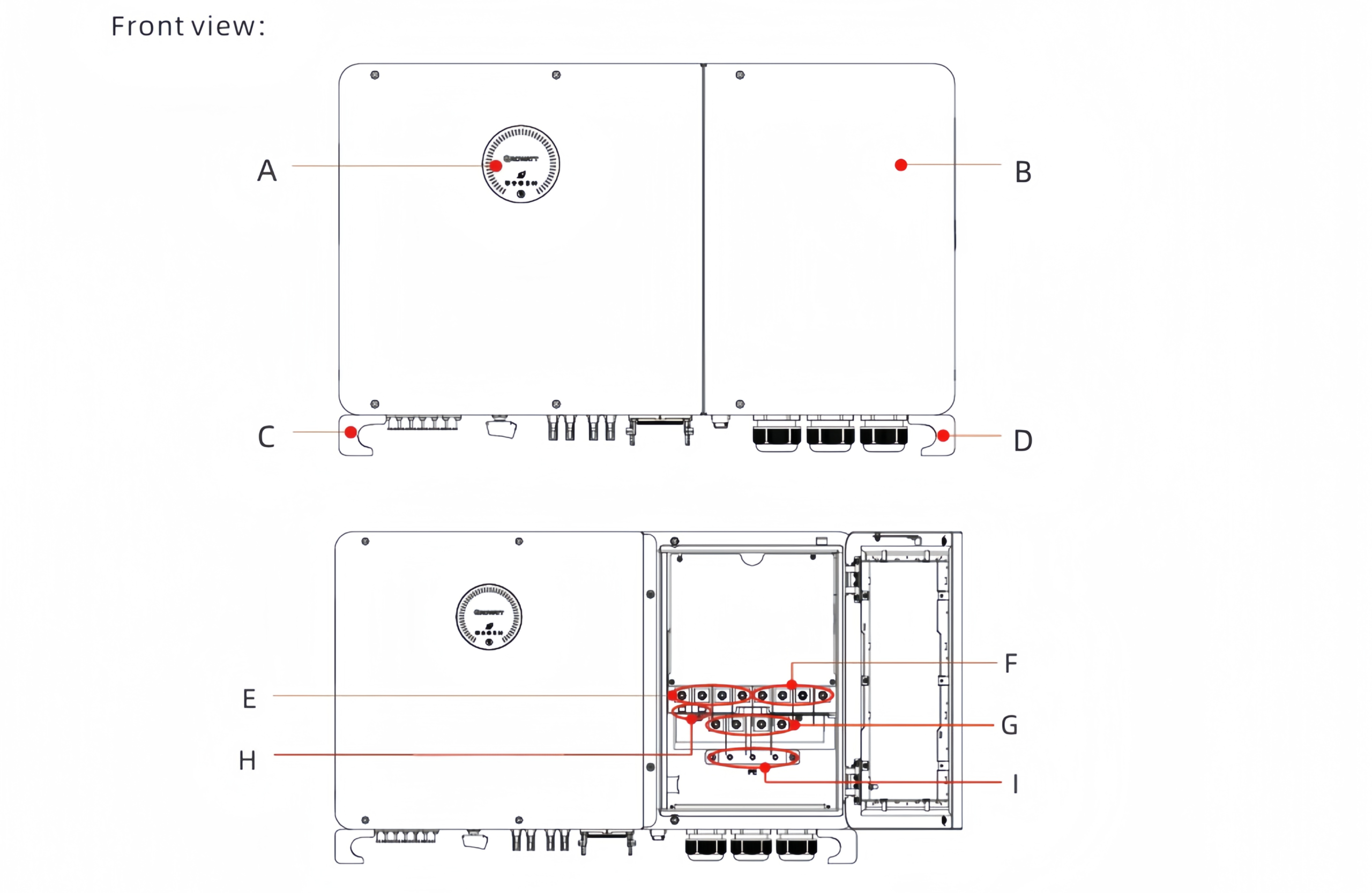

Inverter in detail
Hybrid Three-Phase 29.9-50KW Inverter Purchase Guide
1. Industrial and commercial rooftop photovoltaic energy storage project: Suitable for rooftops of industrial and commercial buildings such as factories, warehouses, office buildings, and shopping malls. It can fully utilize idle rooftop resources for power generation, store excess electricity, stabilize peak and off-peak electricity prices, reduce enterprise electricity costs, and achieve green and low-carbon production.
2. Microgrid project: Applicable for the construction of microgrids in remote areas and industrial parks. It can operate in coordination with photovoltaic, energy storage, and diesel generators to ensure stable power supply for the microgrid and solve the problems of insufficient power grid coverage and unstable power supply in remote areas.
3. Off-grid power supply project: Suitable for scenarios without power grid coverage such as mining areas, farms, and outdoor base stations. It realizes complete off-grid power supply, meeting the power needs for production, living, and office, and breaking away from the reliance on traditional power grids.
4. Emergency power supply system: As an emergency power supply device for industrial and commercial places, it can quickly switch to off-grid mode when the power grid is interrupted, continuously supply power to critical loads (such as production equipment, emergency lighting, and monitoring systems), and reduce economic losses caused by power outages.

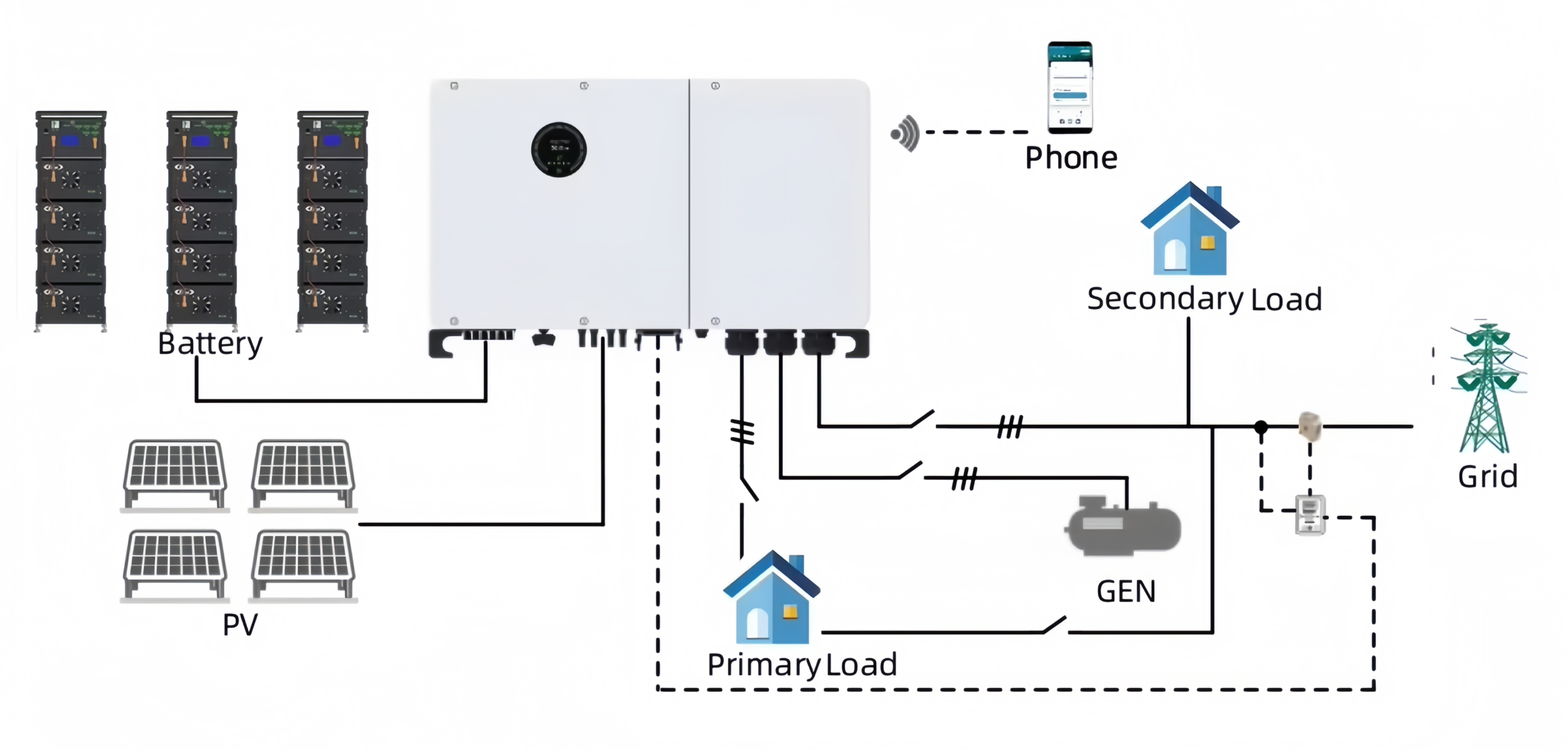

Hybrid working principle
FAQ
The selection of the core model is based on the actual project requirements: for industrial and commercial rooftops with large areas and high power generation demands, 40kW/50kW are preferred; for small and medium-sized factories with moderate electricity consumption, 29.9kW/30kW can be chosen; at the same time, it is necessary to match the total power of the photovoltaic modules (capacity-to-load ratio ≤ 2.0), battery capacity and load requirements. It is recommended to contact our technical team to provide a customized selection plan.
Yes. The IP66 protection level can achieve complete dust-proof and water-proof against strong water jets. It can adapt to harsh outdoor environments such as rain, wind, sand and dust, and no additional protective shed is required. However, it is recommended to install it in an area with ventilation and without any obstructions to avoid long-term water accumulation and direct sunlight, thereby further extending the service life of the equipment.
The core advantages are reflected in three points: First, the 4-channel MPPT design enables higher tracking efficiency and more stable power generation. Second, it is compatible with high-voltage batteries (160-800V), eliminating the need for additional voltage boosting equipment, simplifying the system configuration and reducing costs. Third, it supports linkage with diesel generators and 100% unbalanced load, making it suitable for more complex industrial and commercial scenarios, and ensuring stronger operational stability.
The inverter is equipped with an intelligent monitoring system, which supports three communication methods: WiFi, 4G, and Ethernet. Through the mobile app and the computer backend, one can view real-time data such as the equipment's operation status, power generation volume, battery power, and fault alarms. It also supports remote debugging, allowing maintenance personnel to keep track of the equipment situation at any time without the need for on-site duty.
This product comes with a default warranty of 5 years. During the warranty period, if there is a malfunction of the equipment that is not caused by human factors, you can contact the official after-sales service.
