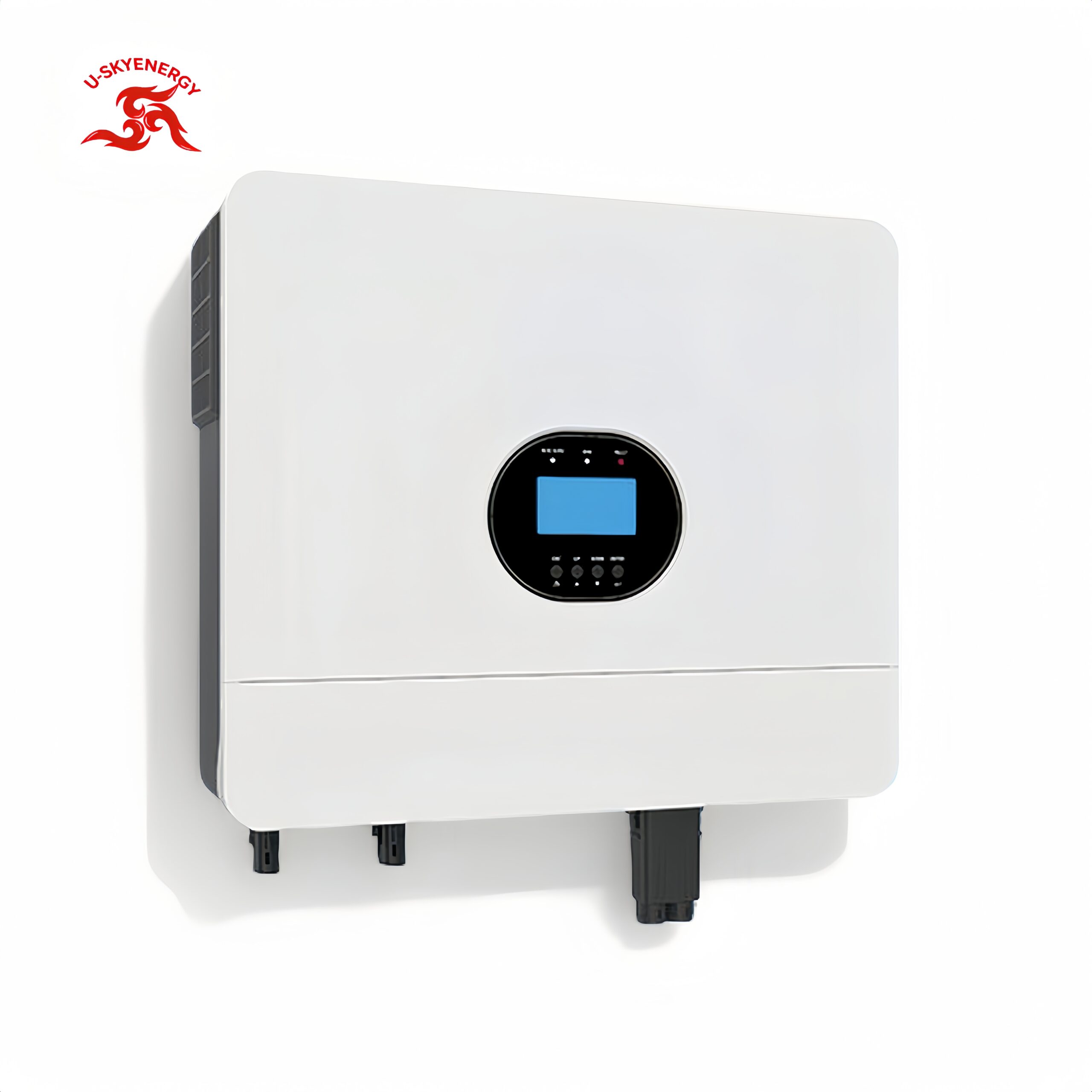

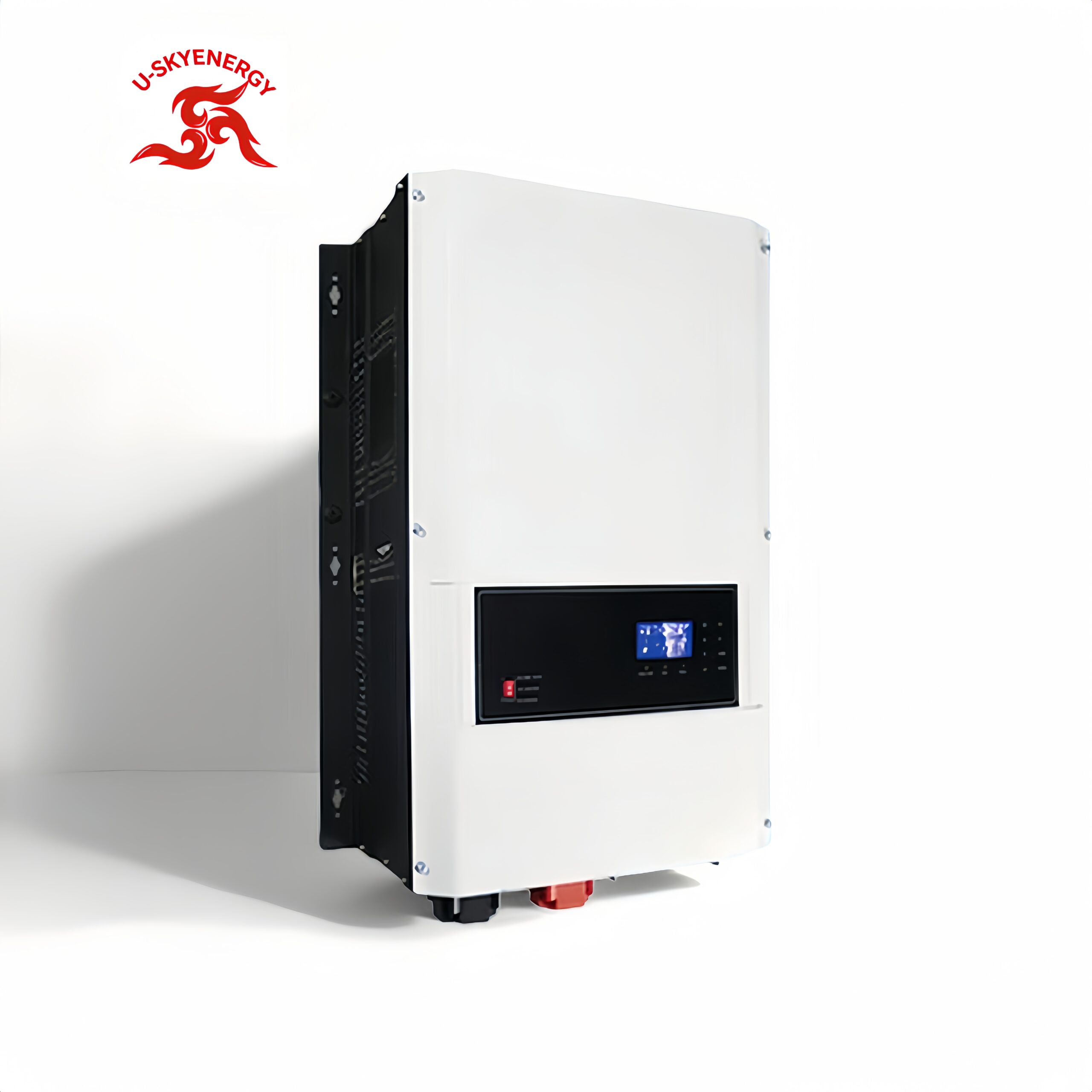

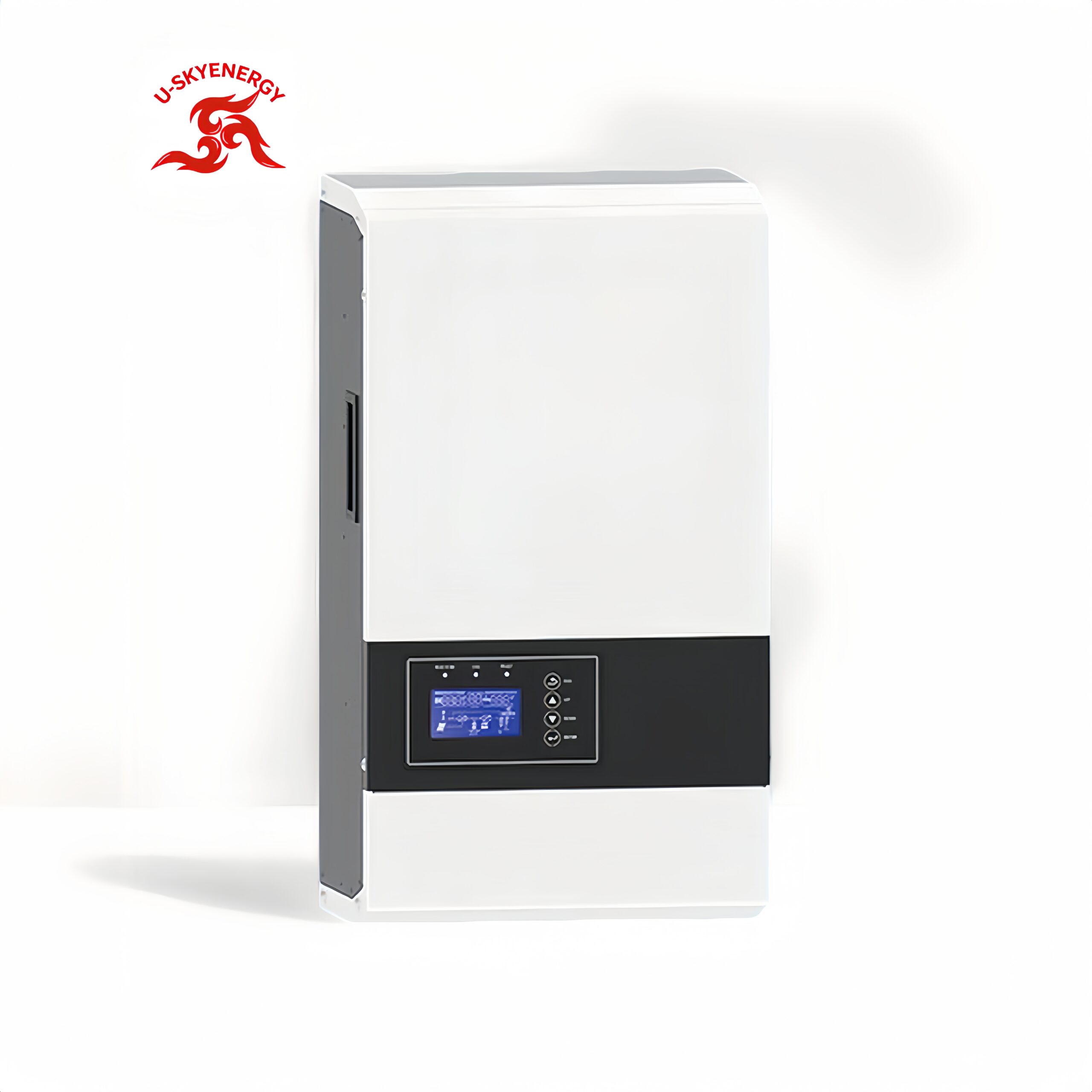

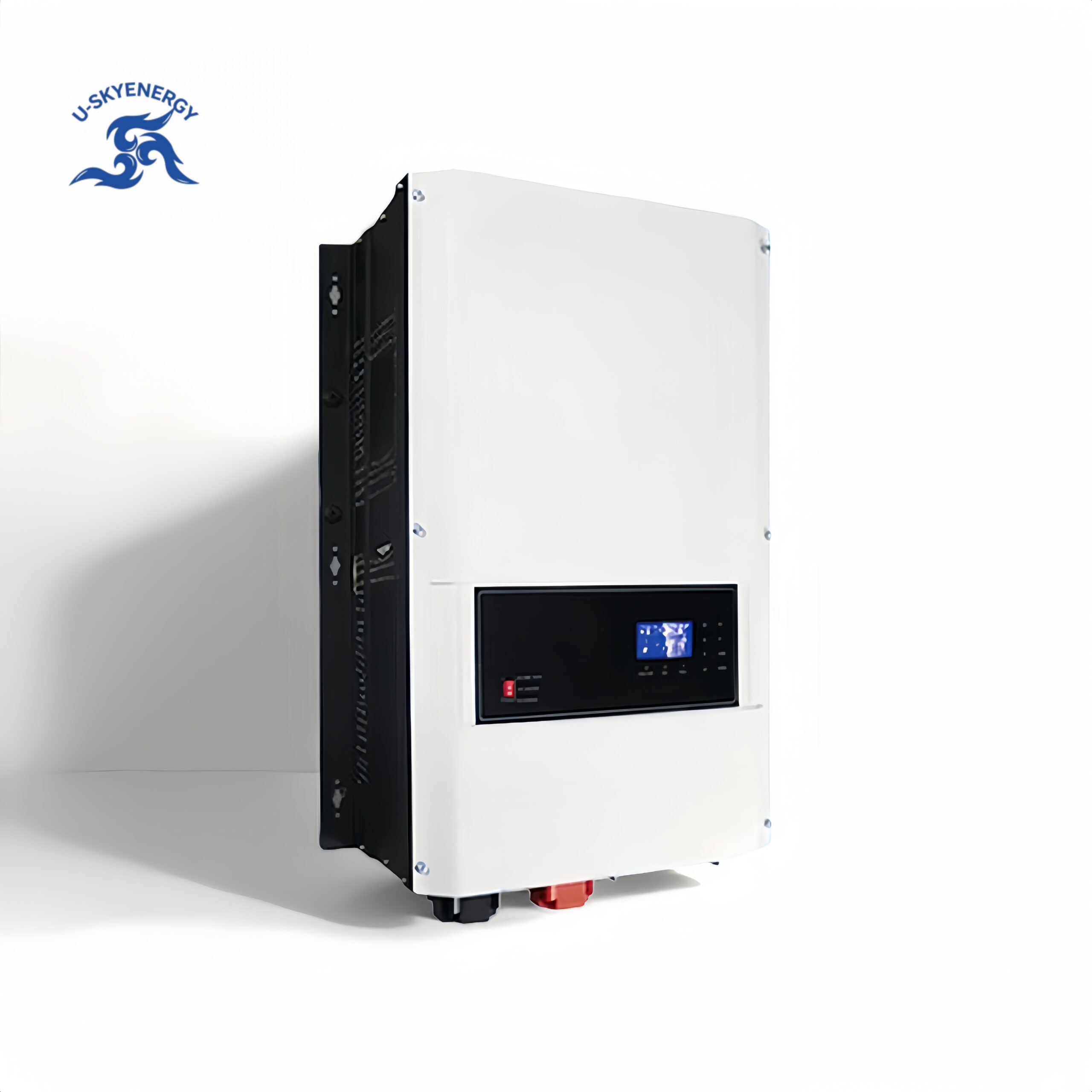

Off-Grid Storage Inverter

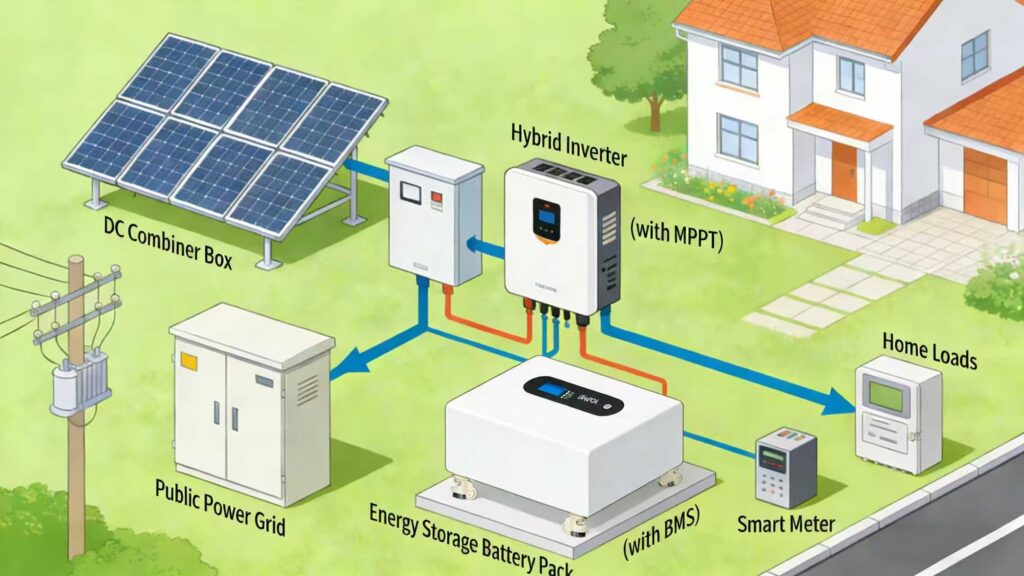

Off-grid inverter is a key part of off-grid solar system, which converts the direct current of solar modules into alternating current.
Off-grid inverters are divided into separate off-grid inverters and off-grid inverter built-in mppt charge controller.
Separate off-grid inverters need to add an additional charger controller to charge the battery, which is safer and is mainly used in the American market.
The inverter built-in mppt controller has its own charger, which can be directly connected to the battery for charging, saving installation space and cost. It is mainly used in European, Asian and African markets.
Off-grid inverter specifications include single-phase 220-240v, 50hz; three-phase 380-415V 50hz; single-phase 110v, 208v, 120v / 240v 60hz and three-phase 480v.
Product Advantages
High Yields
-DC/AC ratio up to 1.2 -2 times peak power ability -output power factor up to 1.0
Scalable ＆ Flexible
-Up to 6 units in parallel for capacity extension -Multi-customized modes for diverse scenarios -Compatible with lithium, lead-acid and GEL batteries
Smart ＆ Reliable
-Support Wifi and GPRS remote monitoring -PVkeeper platform for local commissioning -Timing charging and output control
Product Performance
- Integrated MPPT charge controller
- Equalization charging function
- Work with or without battery
- PV input voltage up to 500VDC
- Configurable grid or sloar input prority
- Optional WIFI/GPRS remote monitoring
- Support parallel operation for capacity expansion up to 45kw
- PV and grid power the load jointly if PV energy is unsufficient
- Flexibly schedule the inverter charging and discharging time

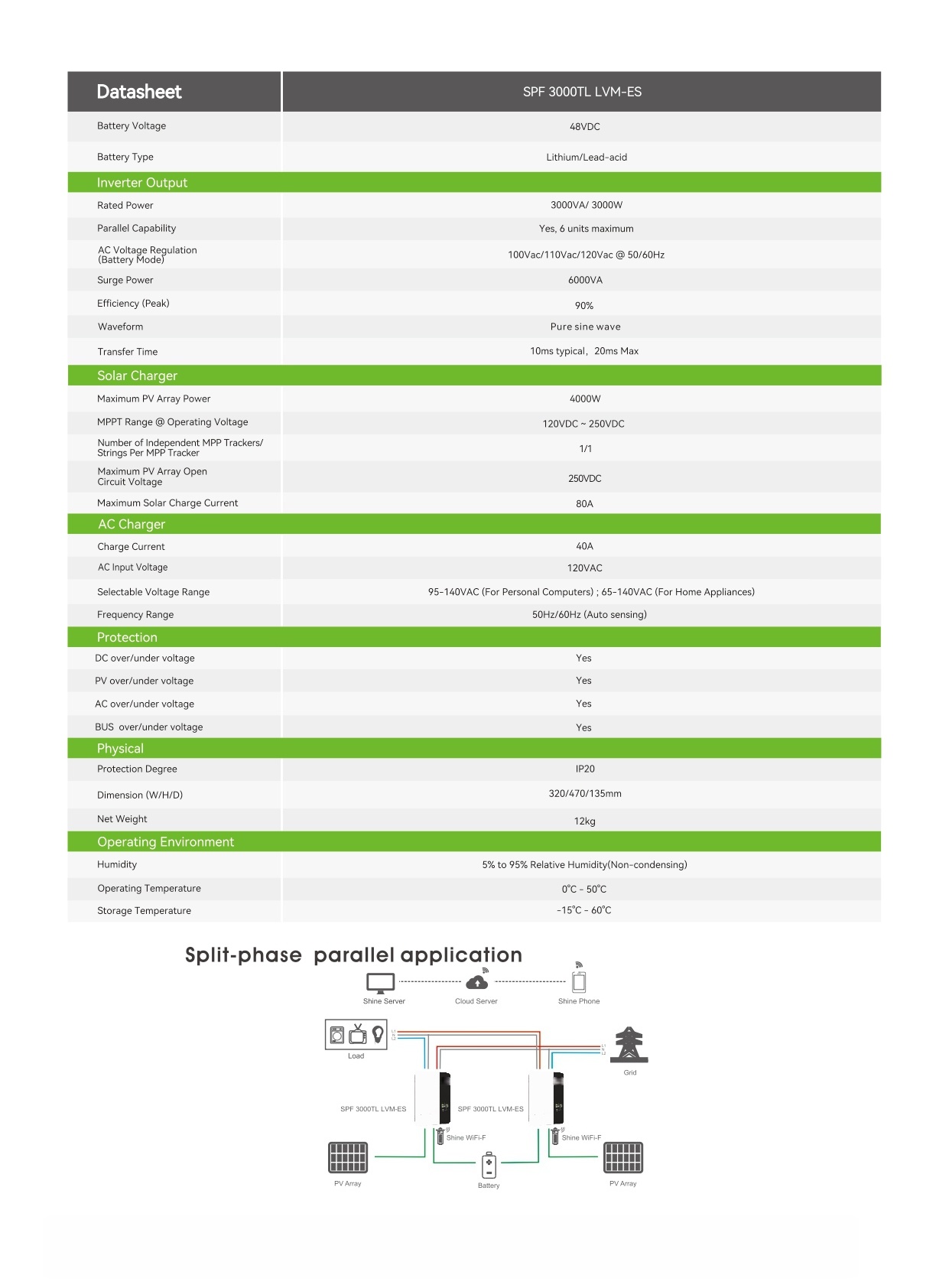

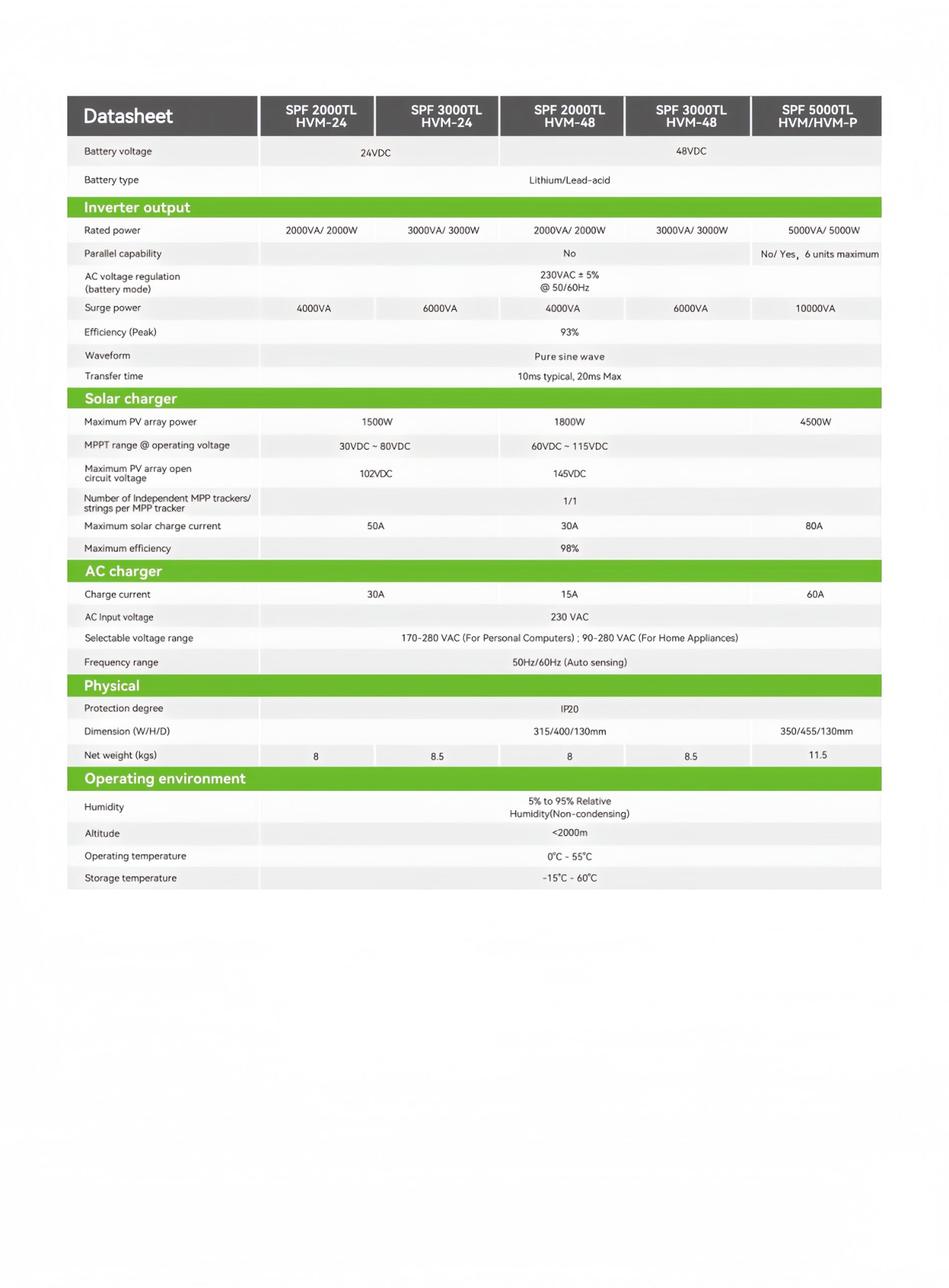

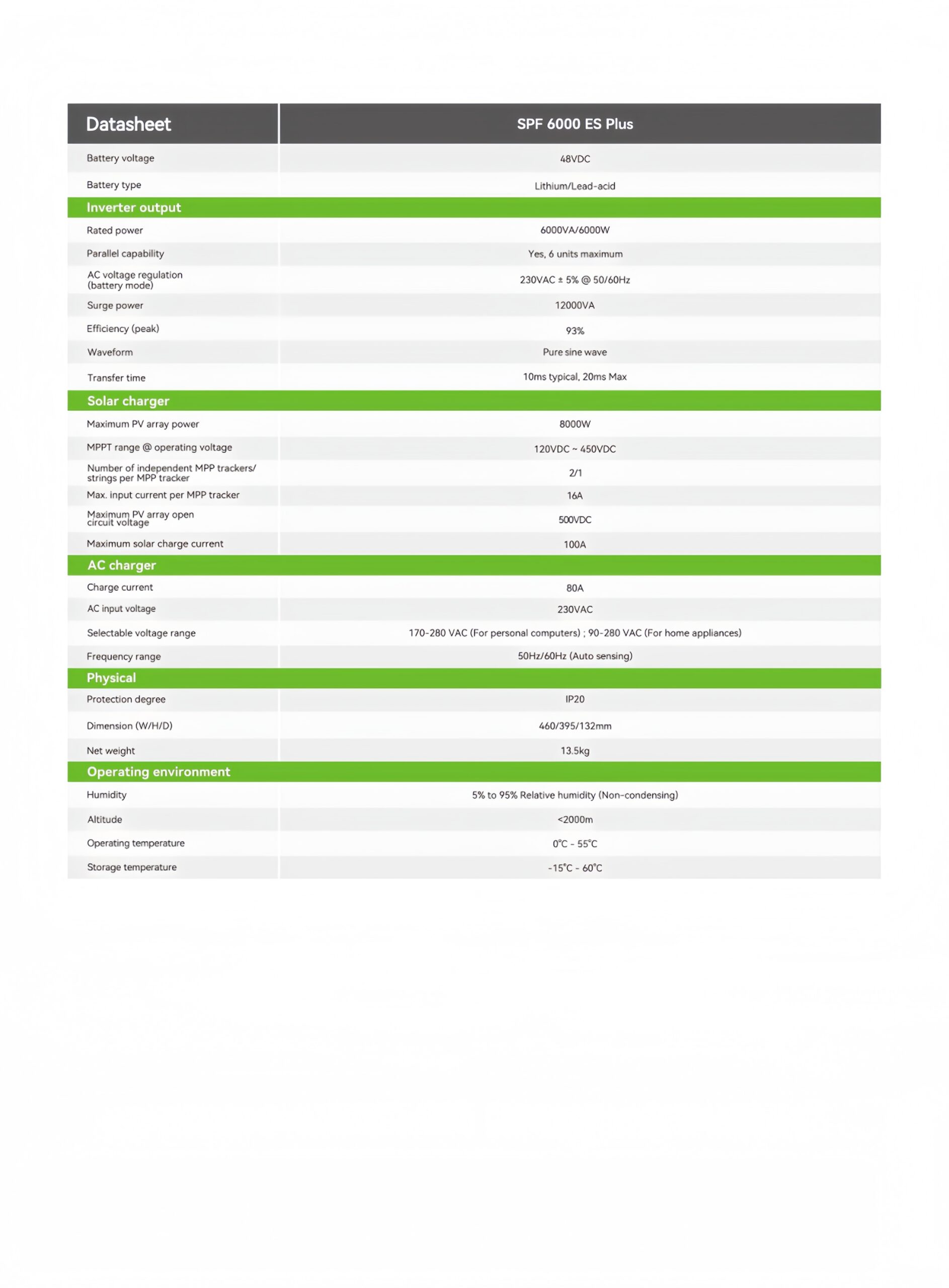

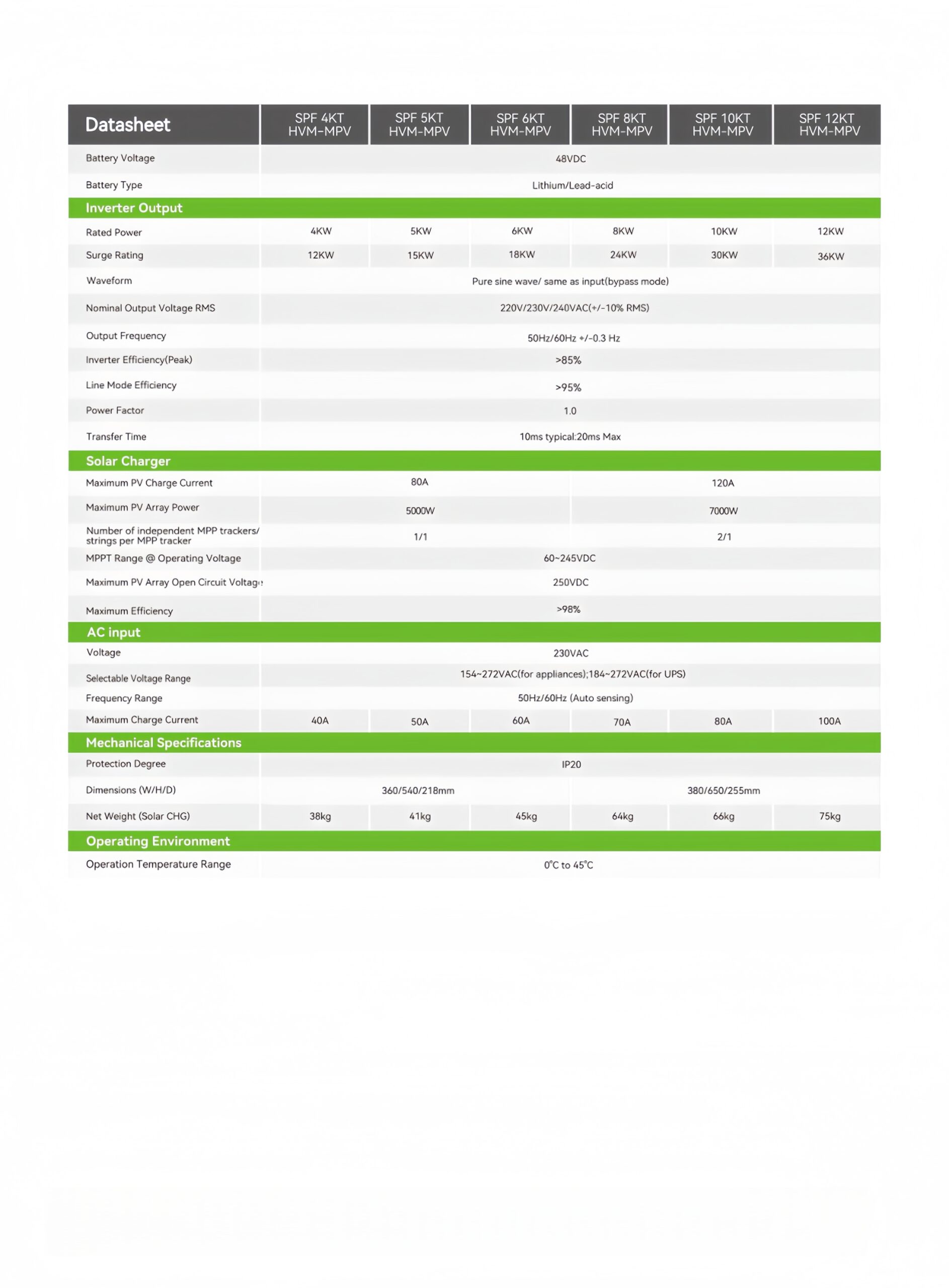

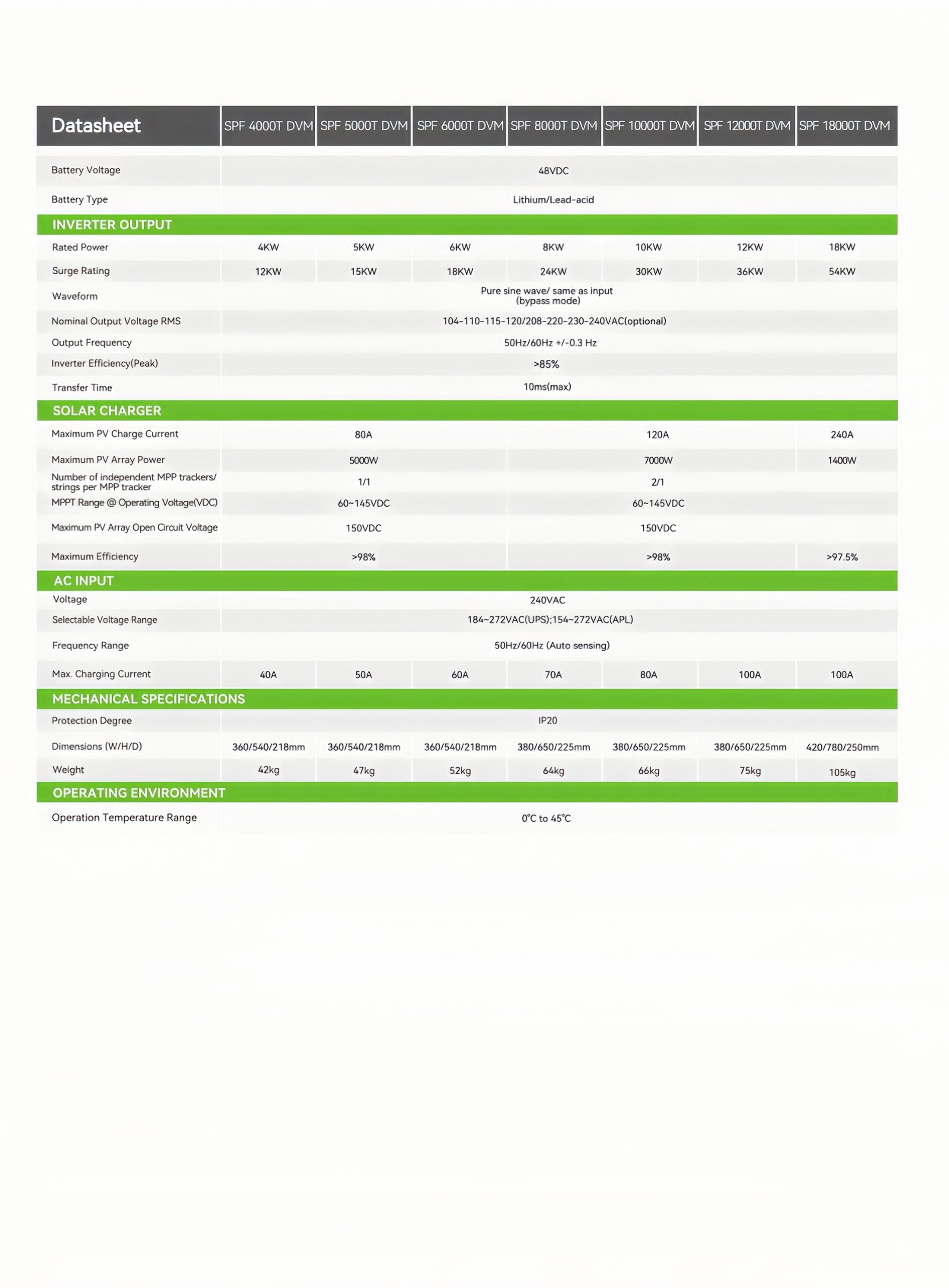

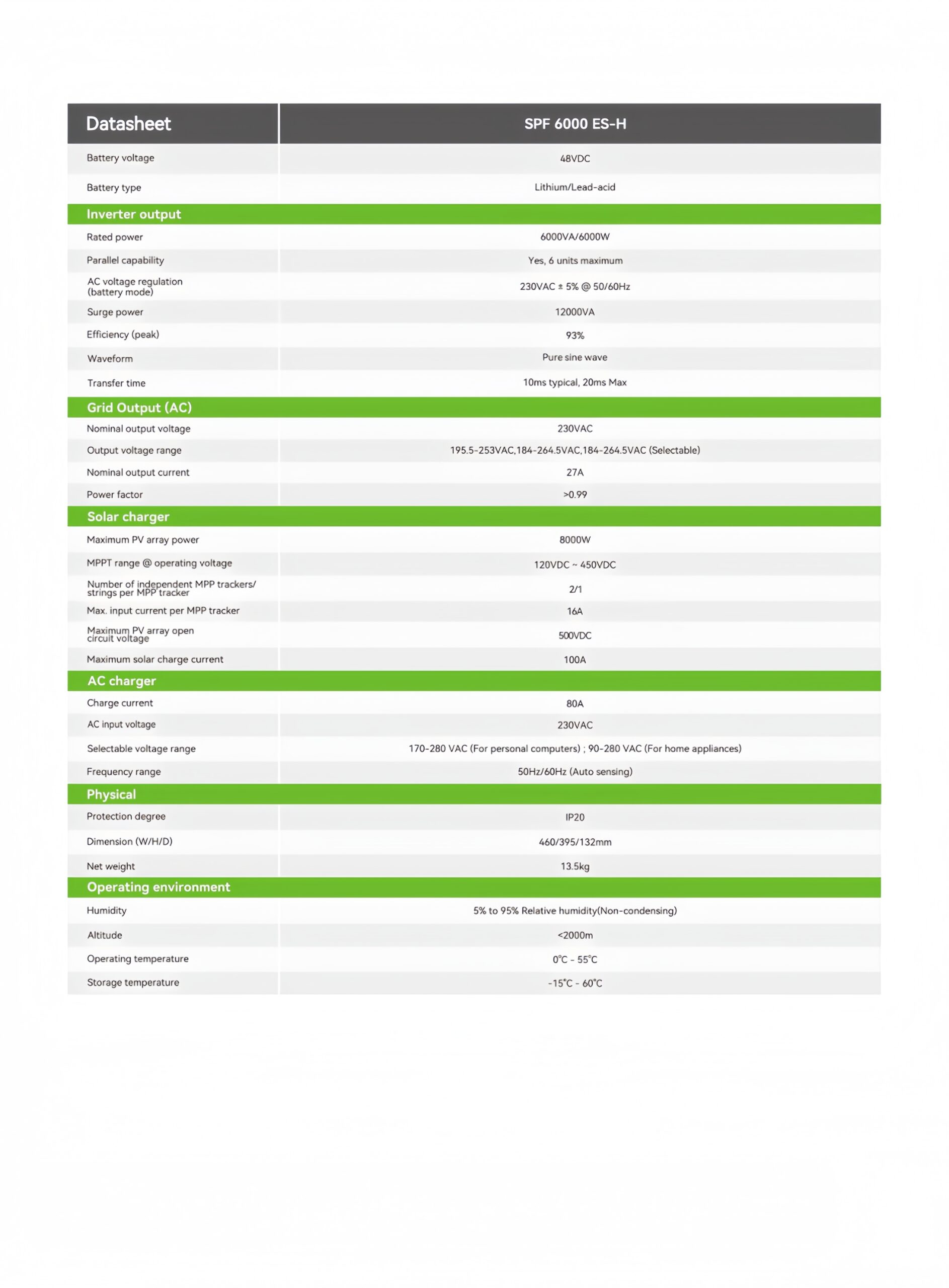

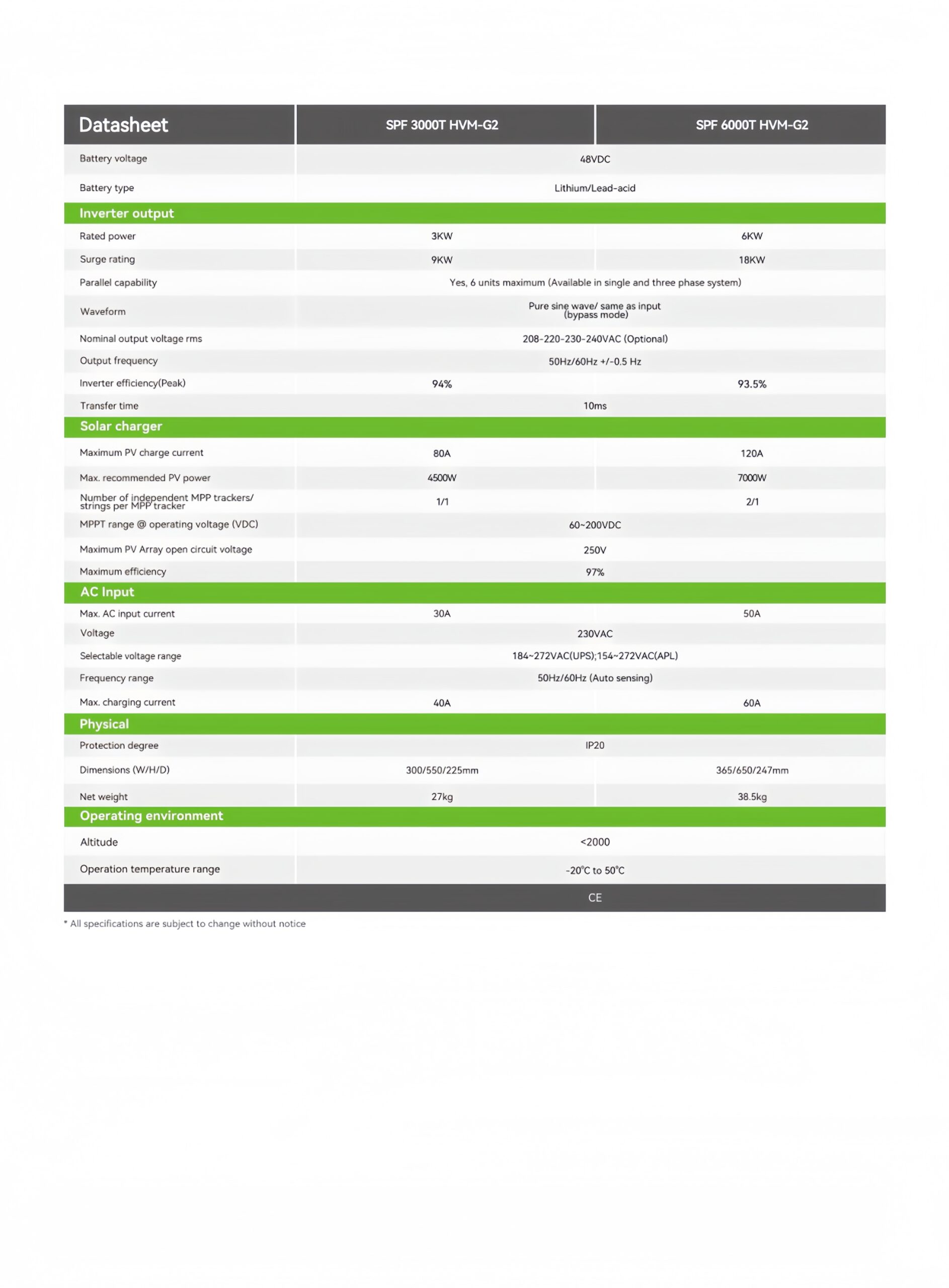

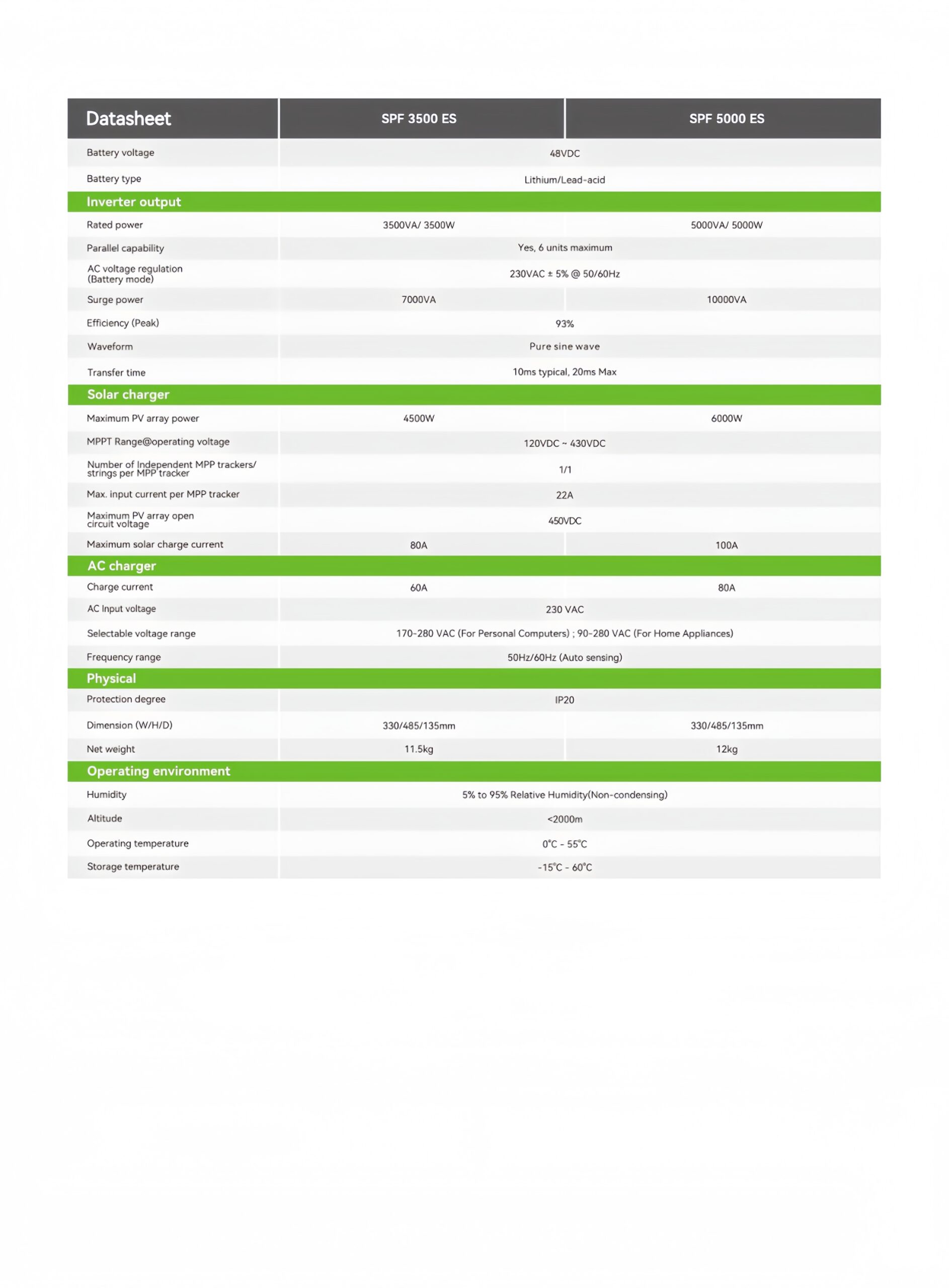

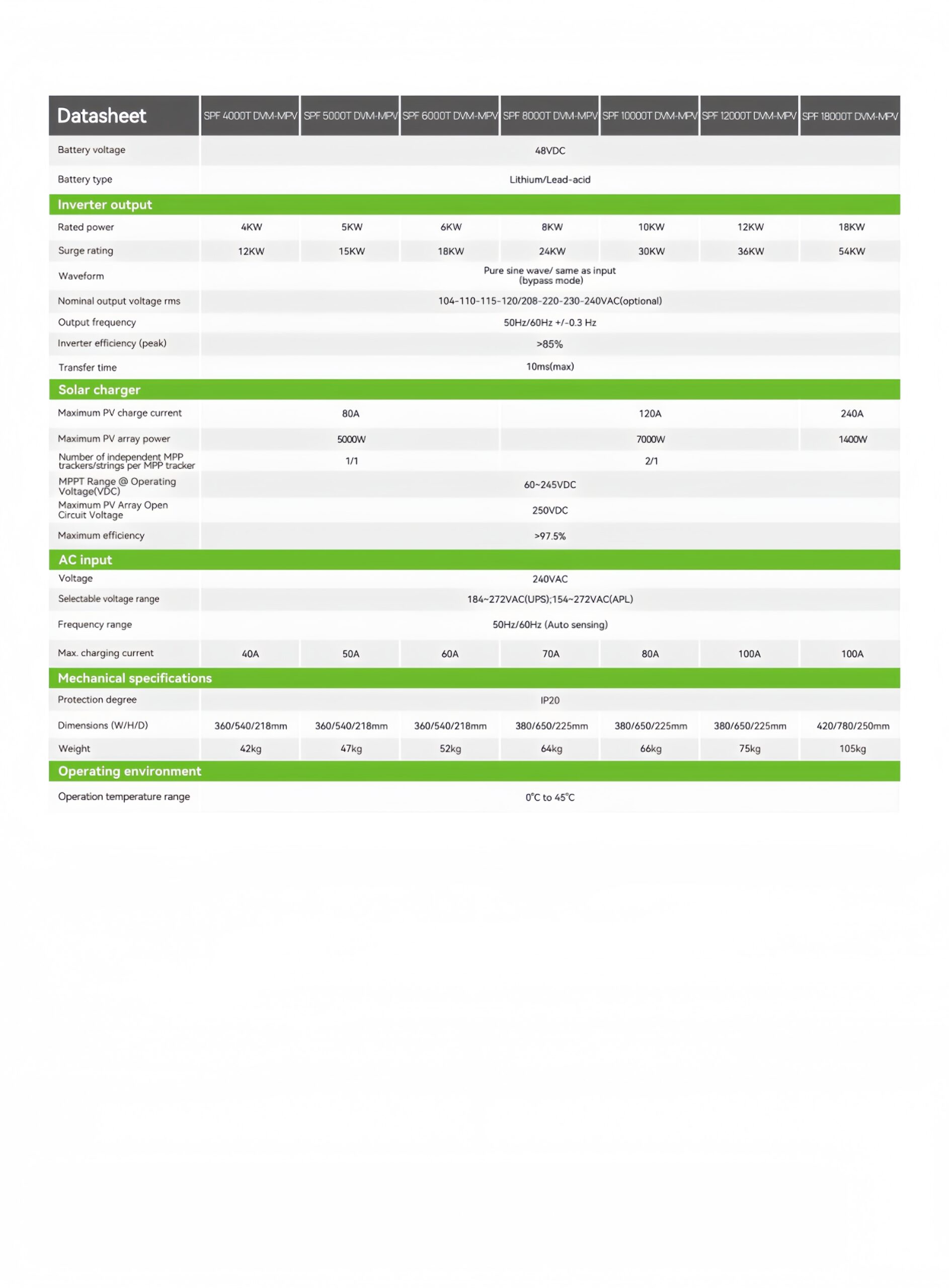

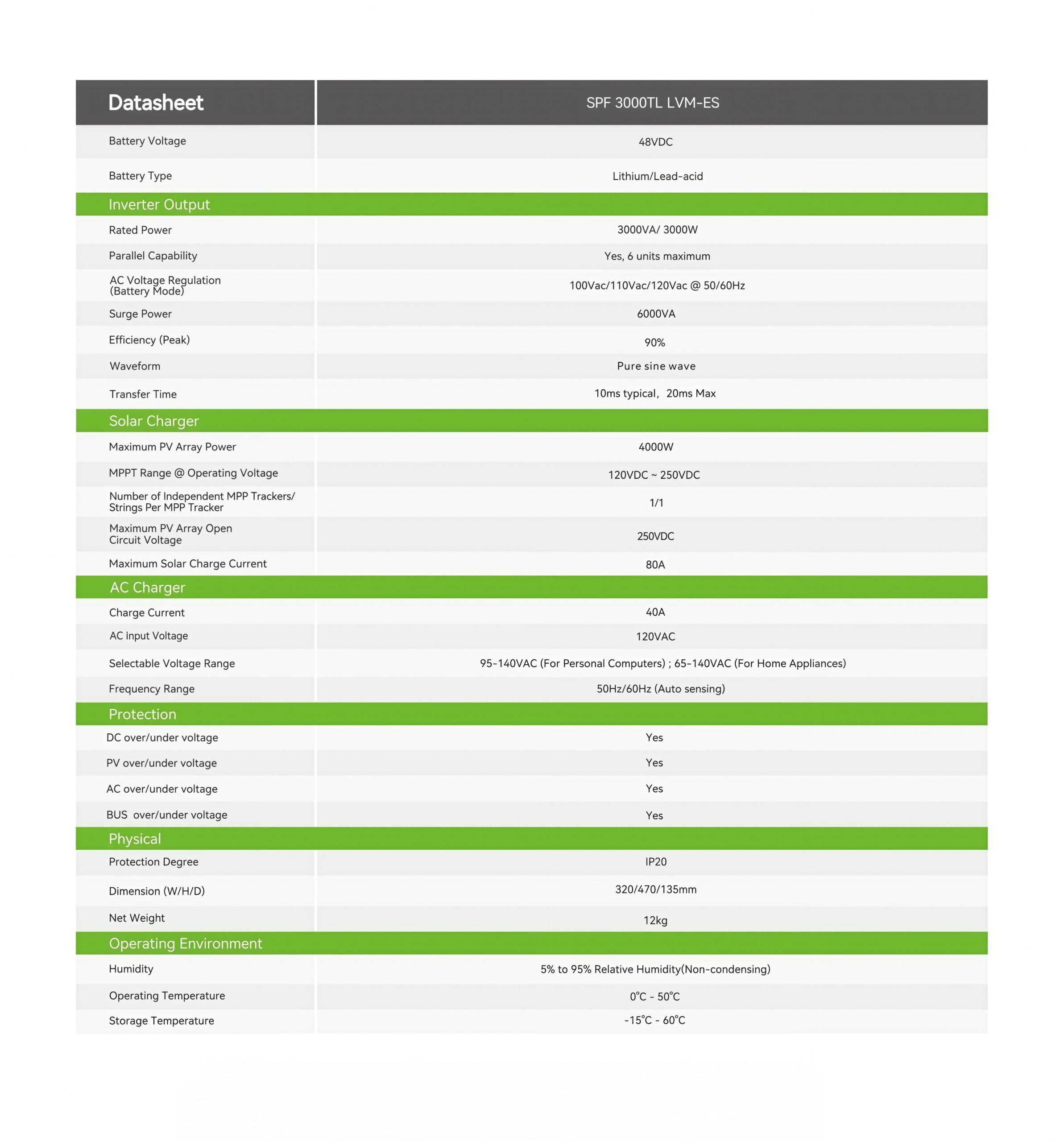

Off-grid Energy Storage Inverter Parameters
The above parameters apply to only a selection of inverters. For data on other specifications, please contact our sales representatives.
