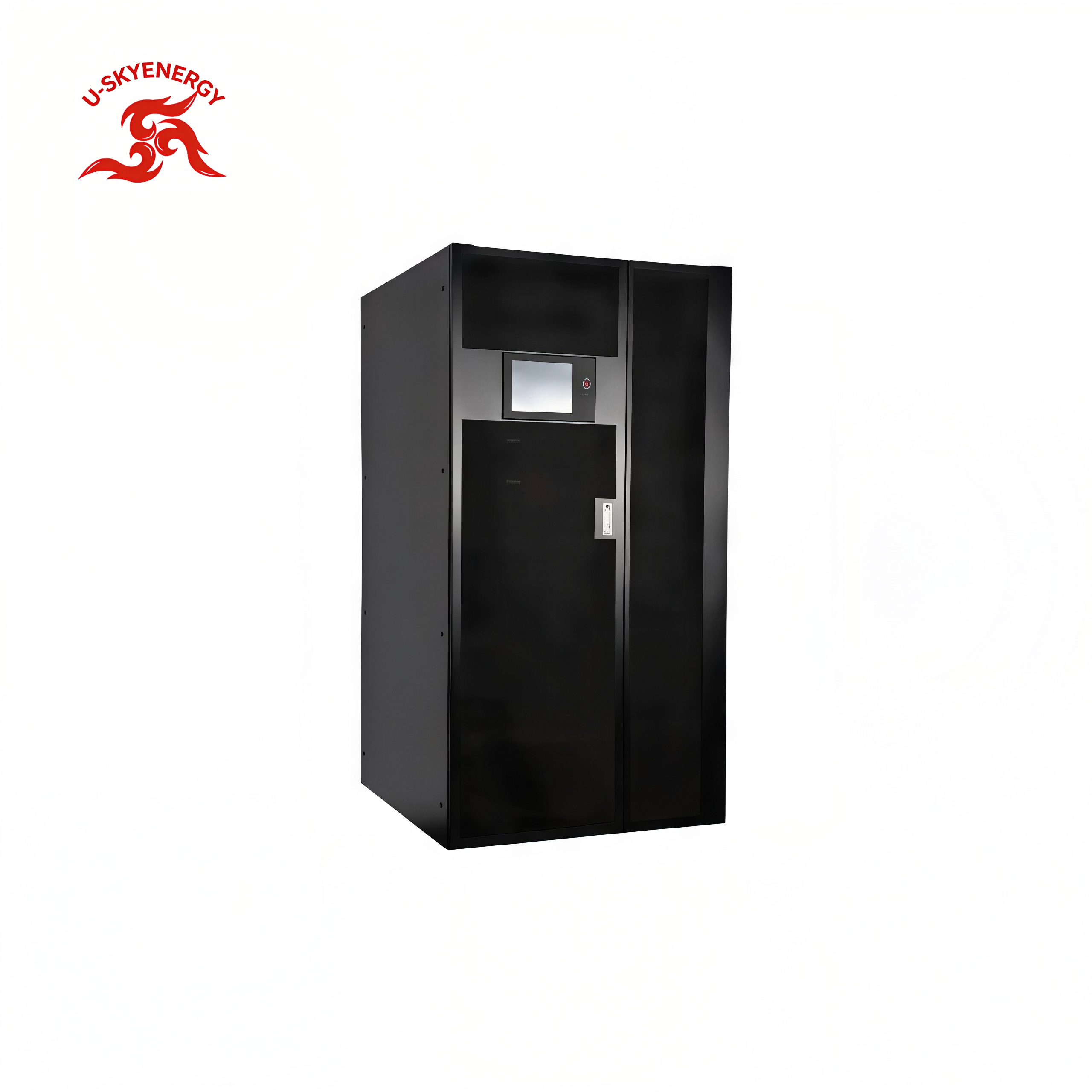

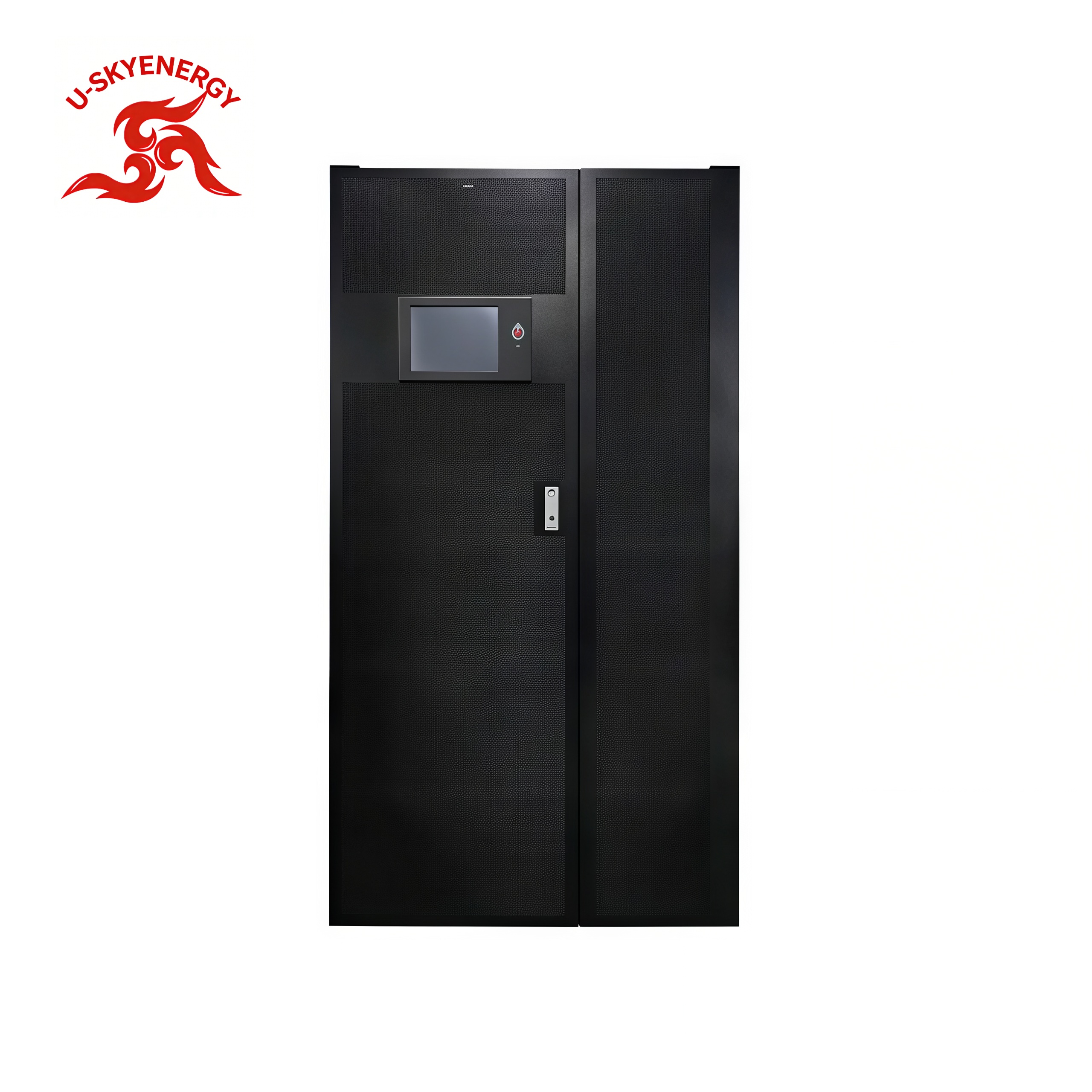

Modular UPS(HQ-M Series 80KVA-1200KVA)
HQ-M 80KVA-1200KVA is the latest industry-leading fully digital uninterruptible power supply product launched. The system adopts a fully modular design, with a capacity configuration of 80-1200kVA. It is simple to expand, easy to maintain, and has high cost performance and availability. It is ideal for large and medium-sized data computer rooms. ideal configuration.
Application:postal communications, financial securities, government agencies, energy and chemical industry, transportation, industrial and commercial taxation, medical and health, national defense and military and other electrical equipment that require reliable power supply.
Product Advantages

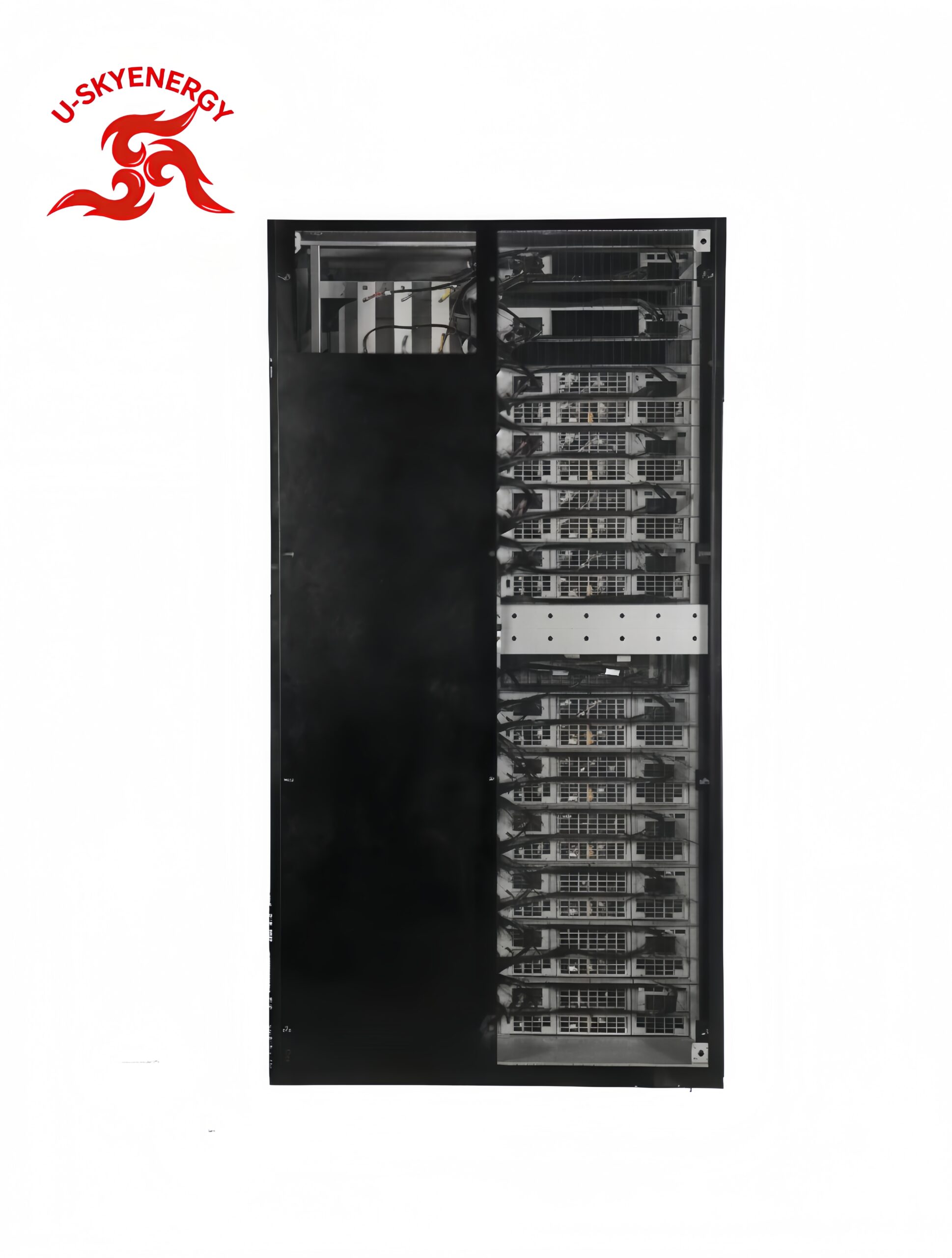

Modular design
-the modular design of the system can be designed according to future system needs, and the modules can be configured according to the existing load, significantly reducing one-time investment costs.
Reliable
-Isolated air duct for key components -Power module N+X redundancy design -Intelligent power module with display&indicators -BMS monitors battery information in real time
Efficient
-Output PF = 1 -Efficiency up to 96% -THDi 0.99
Other parameters
- Modular UPS Hot swappable module for easy operation
- UPS Capacity 20kVA-1200kVA configurable
- Rackmount UPS Rack-mountable for optimized space efficiency
- 3 Phase Power Supply 3 Phase Input, 3 Phase Output

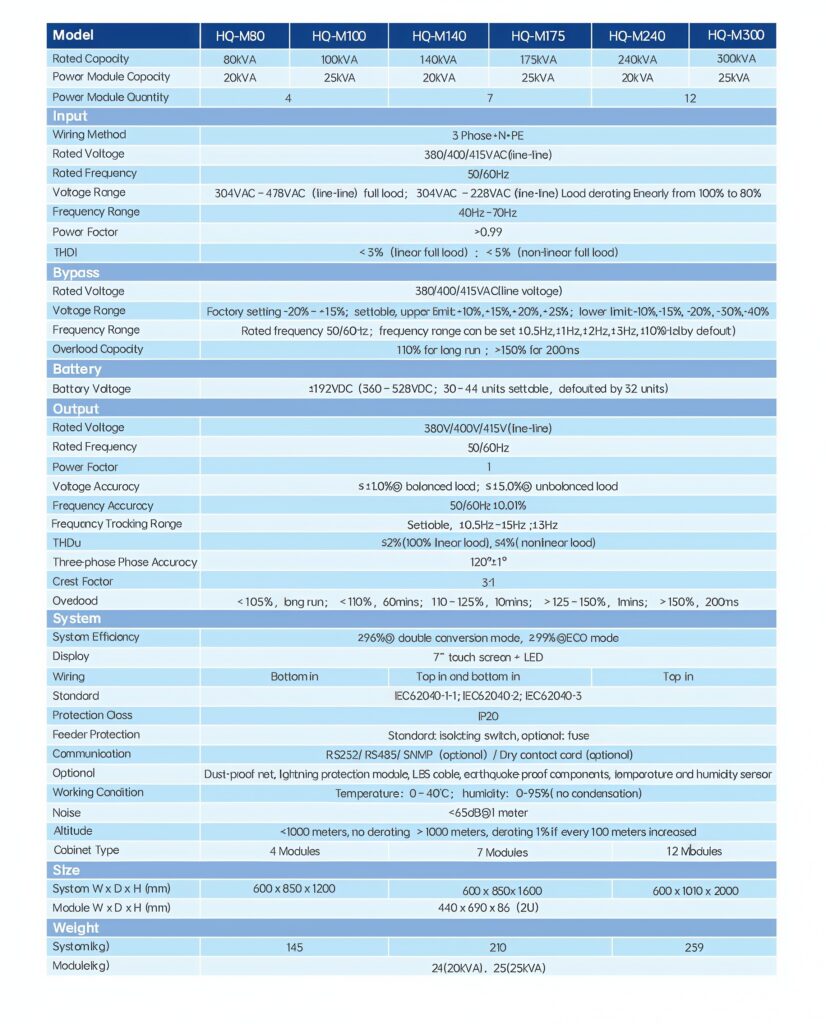

Parameters of the HQ-M Series
If you need different types of UPS, please feel free to contact us for further information.
